Lightning Counter

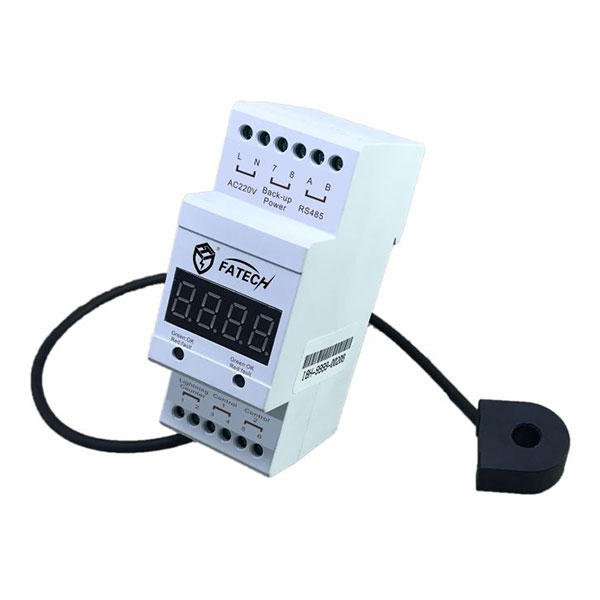

FATECH FLRC-D is an LCD display lightning strike counter with inductive probe sampling.It operates at nominal voltage 220V, with minimum current sensitivity＞0.1kA (8/20μs, rise time≥8μs), backup power supply 6-12VAC and low power consumption＜0.5W. It supports power-off data retention, and data can be cleared by short-circuiting reset terminals.Adopting flame retardant plastic enclosure, IP20 protection degree, inductive probe diameter 9mm, applicable wire specification 0.5mm²-1.5mm², operating temperature range -40°C~+80°C and humidity＜90%(25°C), it records lightning events from 0 to 9999, with product width 36mm. It is suitable for lightning monitoring of power systems and lightning protection equipment.

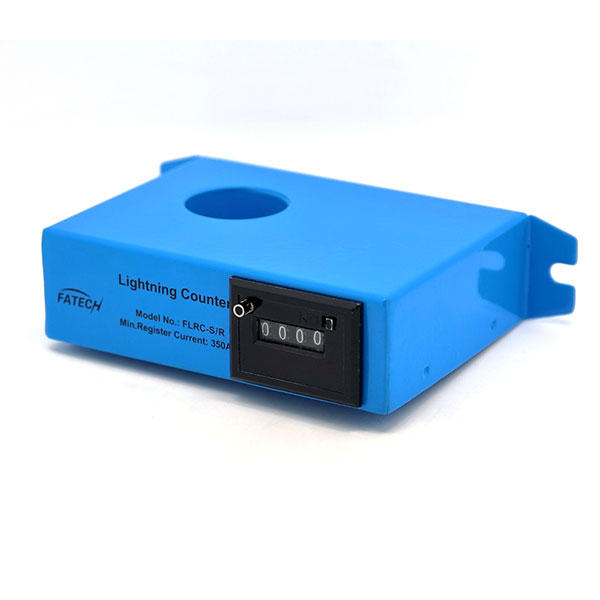

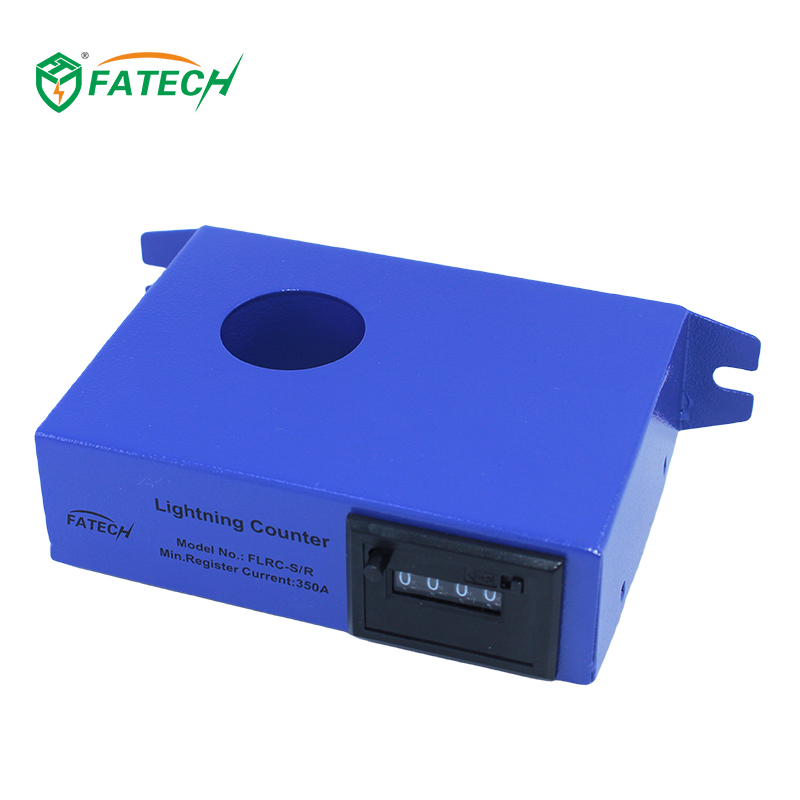

FATECH FLRC-S/R is a lightning strike counter with built-in inductive probe sampling, operating without battery or external power supply.It has minimum current sensitivity＞350A (rise time≥8μs), maximum detectable impulse current 100kA, impulse interval＞1s, and adopts electromechanical counter to record lightning events from 0 to 9999. Equipped with one-button reset function to clear reading to zero.Adopting metal plate enclosure, wide operating temperature range -20°C~+70°C, 30mm installation window, overall size 110×33×82mm and net weight 0.46kg, it is suitable for lightning monitoring of lightning protection systems, power lines and building earthing devices.

FATECH FRLRC-S/R-43 is a lightning strike counter with built-in inductive probe sampling, working without battery or external power supply.It features minimum current sensitivity＞350A (rise time≥8μs), maximum detectable impulse current up to 100kA, impulse interval＞1s, electromechanical counter display for lightning events 0–9999, and one-button reset function to clear reading to zero.With metal plate enclosure, operating temperature range -20°C~+70°C, 40±2mm installation window, overall size 170×42×97mm and net weight 0.46kg, it is widely applied for lightning monitoring of lightning protection systems, power distribution lines and building earthing equipment.

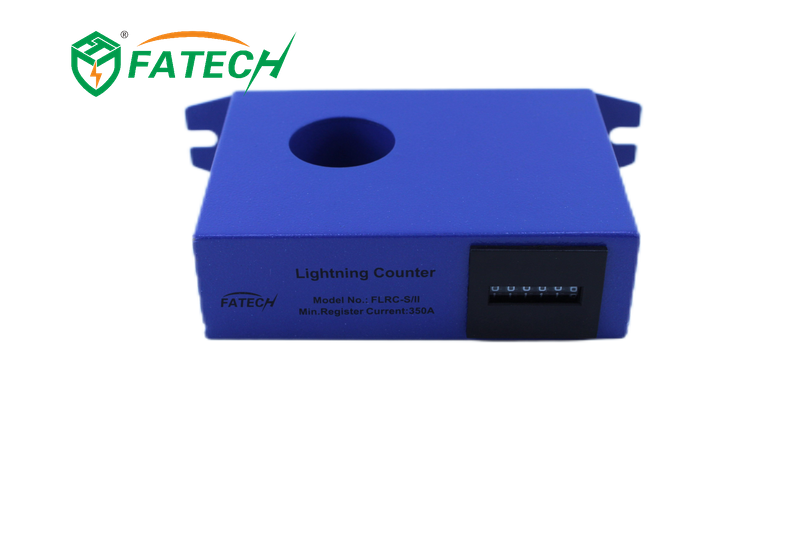

FATECH FLRC-S/II is a TUV certification 6 Digits Mechanical Lightning Strike Counter, with built-in inductive probe sampling, no battery and no external power supply required.It features high current sensitivity＞350A (rise time≥8μs), maximum detectable impulse current up to 100kA, impulse interval＞1s, and adopts electromechanical digital display to record lightning events from 0 to 999999.With metal plate enclosure, wide operating temperature range -20°C~+70°C, 30mm installation window size, compact body size 110×33×82mm and net weight 0.46kg, it is widely used for lightning strike monitoring on power distribution lines, lightning protection systems and building lightning devices.
