SPD for LED Street Lighting

FATECH FLP03-P/AG series, including FLP03-150-P/AG, FLP03-275-P/AG, FLP03-320-P/AG and FLP03-385-P/AG, are Class II+III/C+D/T2+T3 combined surge protective devices specially designed for LED street light systems.
This series is applicable to 120V, 230V and 380V LED street light power networks, with maximum continuous operating voltage options of 150V, 275V, 320V and 385V. It features maximum discharge current up to 6kA and nominal discharge current of 3kA, providing reliable multi-circuit surge protection for L-N, N-PE and L-PE with well-matched voltage protection levels.
With fast response time ≤25ns for L-N and ≤100ns for N-PE, built-in thermal cut-off structure and 16A recommended backup fuse, it delivers stable basic overvoltage suppression performance. Without failure indicator, it offers a cost-effective solution for conventional lighting protection demands.
Adopting IP66 high protection degree and UL94V-0 flame retardant housing, it works steadily within -40°C~+80°C wide temperature range and up to 3000m altitude, perfectly suitable for conventional municipal LED street lights, outdoor lighting and cost-sensitive lightning protection projects.

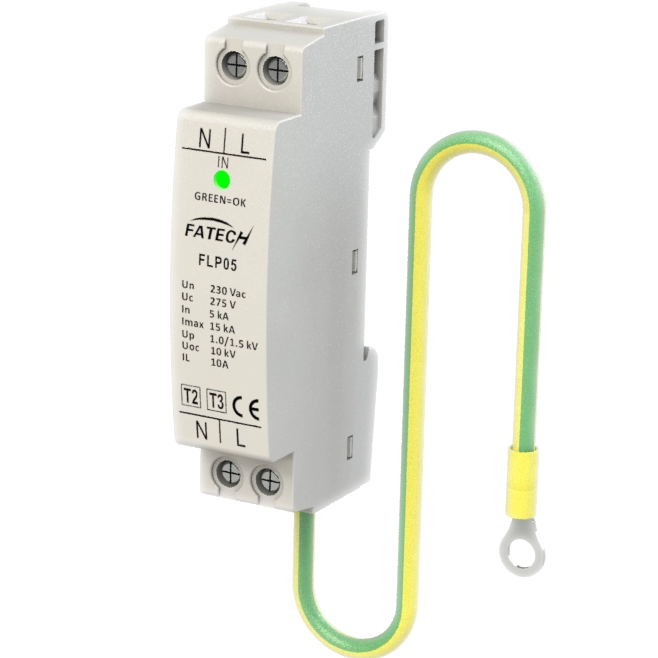

FATECH FLP05-i-D series includes FLP05-150i-D, FLP05-275i-D, FLP05-320i-D and FLP05-385i-D, belonging to Class II+III/C+D/T2+T3 integrated surge protective devices specially engineered for LED street light applications.
Designed for LED street light systems with nominal voltages of 120V and 230V, this series features continuous operating voltages of 150V, 275V, 320V and 385V. It provides a maximum discharge current of 15kA and nominal discharge current of 5kA, with optimized voltage protection levels for L-N, N-PE and L-PE circuits to effectively clamp transient surges and overvoltage.
Boasting rapid response time of ≤25ns for L-N and ≤100ns for N-PE, the unit adopts internal thermal cut-off design and comes with a 20A recommended backup fuse. Integrated with a clear LED disconnection indicator, it enables real‑time visual monitoring of operating status and fault alerts for easier on-site maintenance.
Built with robust IP66 outdoor protection grade and UL94V-0 flame retardant housing material, it supports a wide operating temperature range from -40°C to +80°C and an altitude up to 3000m. With comprehensive three-way protection modes, this rugged SPD is highly suitable for municipal street lighting, outdoor LED lamps and landscape lighting systems under harsh outdoor conditions.

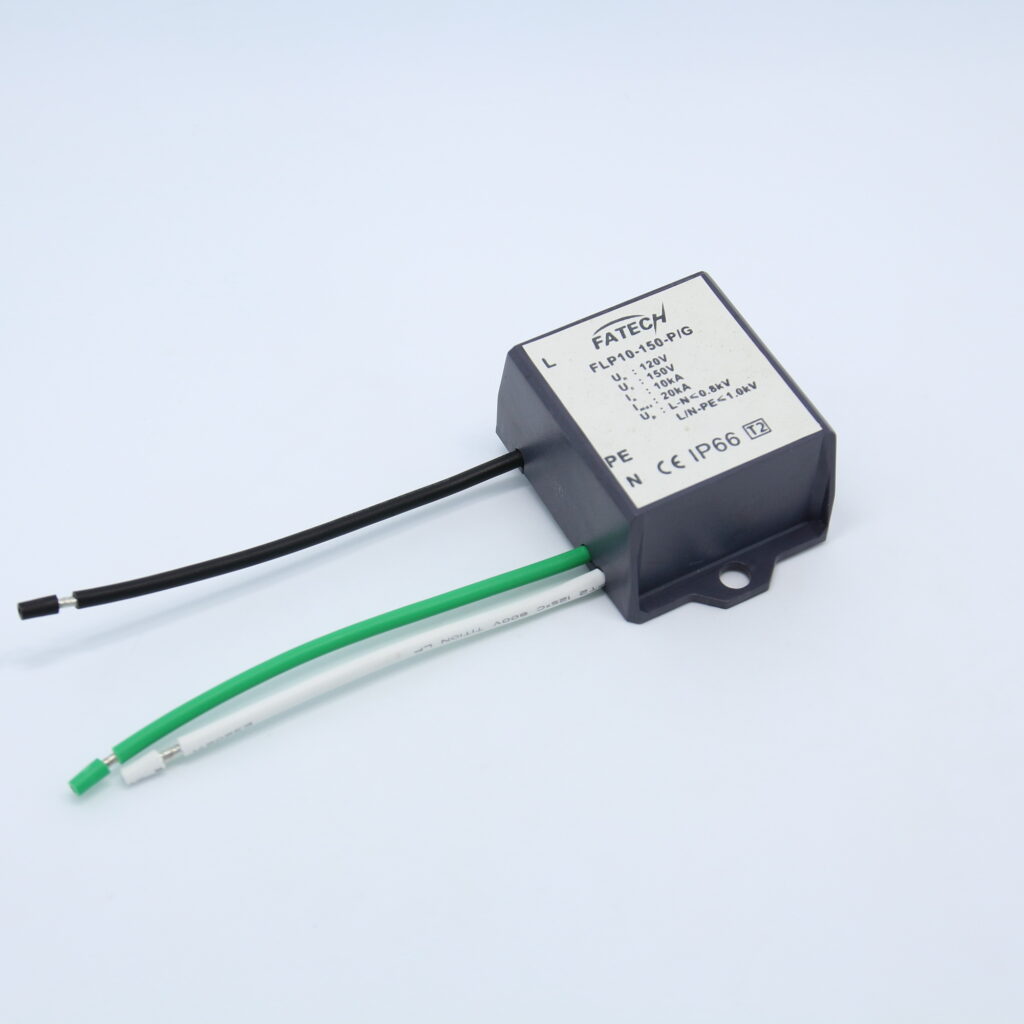

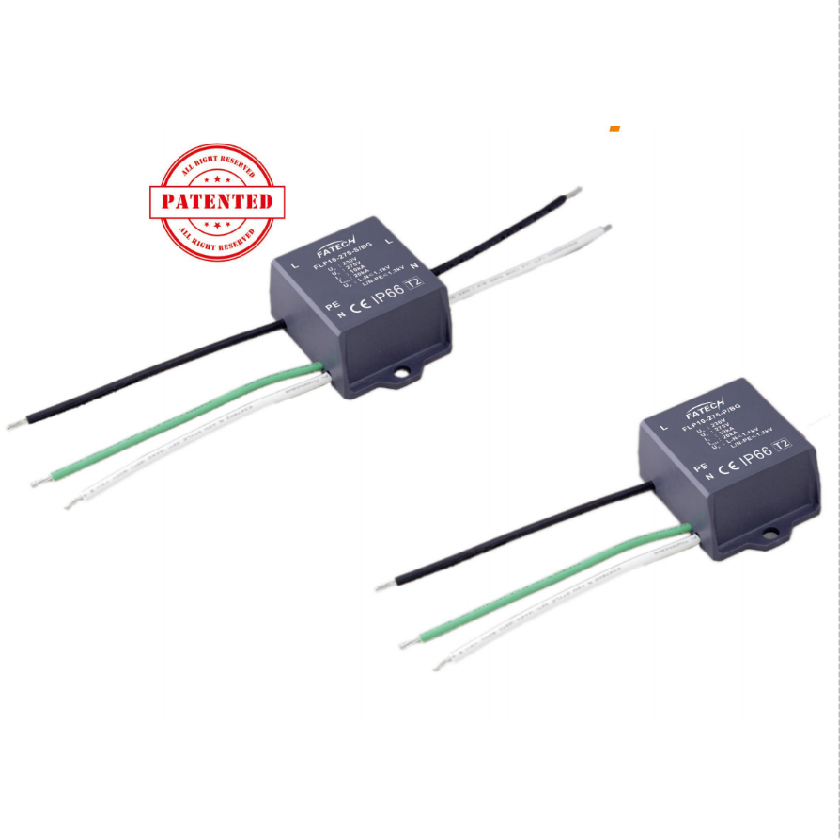

FATECH FLP10-i series, covering FLP10-150i‑P/BG, FLP10-150i‑S/BG, FLP10-275i‑P/BG, FLP10-275i‑S/BG, FLP10-320i‑P/BG, FLP10-320i‑S/BG, FLP10-385i‑P/BG and FLP10-385i‑S/BG, are Class II+III/C+D/T2+T3 combined surge protective devices customized for LED street light systems.
Designed for 120V, 230V and 380V outdoor lighting networks, this SPD series offers continuous operating voltages of 150V, 275V, 320V and 385V. It achieves a maximum discharge current of 20kA and a nominal discharge current of 10kA, with well‑graded voltage protection levels for L‑N and N‑PE loops. The response time is ≤25ns for L‑N and ≤100ns for L/N‑PE, providing efficient suppression of transient surge overvoltage.
Equipped with internal thermal cut-off and multi-protection modes including L-N, N-PE and L-PE, the unit adds a LED failure indicator for real-time working status monitoring, which is the core difference from the standard FLP10 series. Featuring IP66 high outdoor protection, UL94V-0 flame retardant housing, wide temperature tolerance of -40°C~+80°C and applicable altitude up to 3000m, it is highly reliable for long-term outdoor operation and serves as an optimal lightning and overvoltage protection solution for LED street lights and outdoor lighting projects.

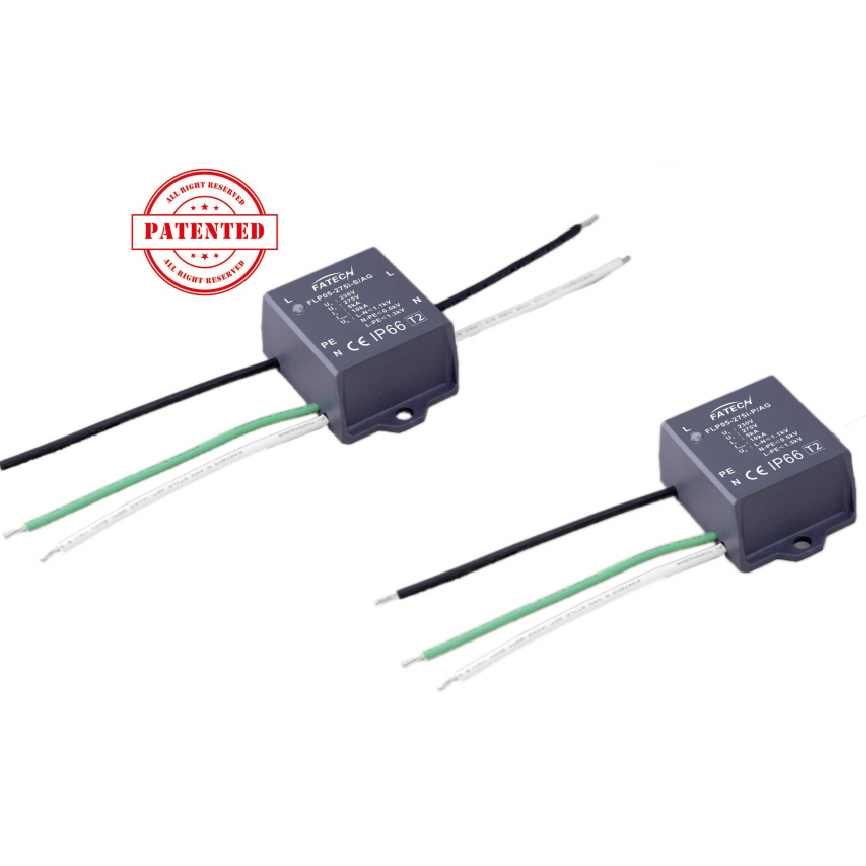

FATECH FLP05-i series consist of FLP05-150i-P/BG, FLP05-150i-S/BG, FLP05-275i-P/BG, FLP05-275i-S/BG, FLP05-320i-P/BG, FLP05-320i-S/BG, FLP05-385i-P/BG and FLP05-385i-S/BG, which are Class II+III/C+D/T2+T3 combined surge protective devices dedicated for LED street light systems.
Applicable to 120V, 230V and 380V outdoor LED lighting networks, this series features rated continuous operating voltages of 150V, 275V, 320V and 385V. It delivers a maximum discharge current of 10kA and a nominal discharge current of 5kA, with excellent voltage protection levels for L‑N, N‑PE and L‑PE circuits to suppress transient overvoltage efficiently.The response time reaches ≤25ns for L-N and ≤100ns for N-PE, equipped with internal thermal cut-off and a 16A recommended backup fuse. Different from the standard FLP05 version, this i-type model is equipped with an LED failure indicator to intuitively display the working status and fault conditions in real time.
With IP66 high waterproof and dustproof performance, UL94V-0 flame retardant housing, wide operating temperature of -40°C~+80°C and maximum applicable altitude of 3000m, it ensures long-term stable operation in harsh outdoor environments. It is an ideal status-monitorable surge protection solution for LED street lights, outdoor landscape lighting and municipal lighting projects.

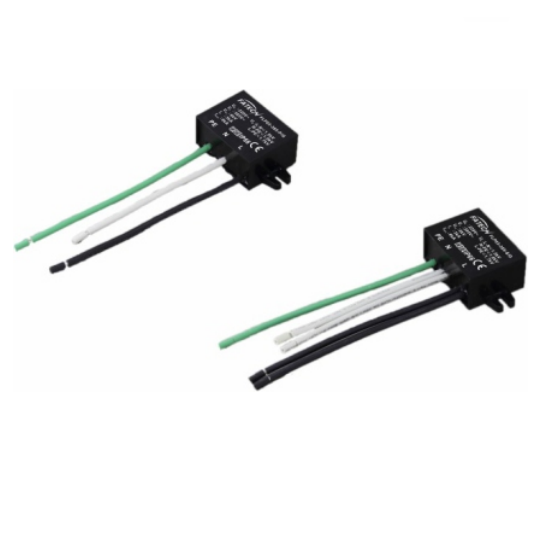

FATECH FLP03 series, including FLP03-150-P/G, FLP03-150-S/G, FLP03-275-P/G, FLP03-275-S/G, FLP03-320-P/G, FLP03-320-S/G, FLP03-385-P/G and FLP03-385-S/G, are Class II+III/C+D/T2+T3 combined surge protective devices developed for LED street light systems.
Suitable for 120V, 230V and 380V LED street light power supply networks, this series offers continuous operating voltages of 150V, 275V, 320V and 385V. It features maximum discharge current 6kA and nominal discharge current 3kA, providing graded voltage protection levels for L-N, N-PE and L-PE circuits to effectively suppress transient surge overvoltage.
It achieves fast response time of ≤25ns for L-N and ≤100ns for N-PE, with a recommended backup fuse of 16A. Different from other models, this version is designed without internal thermal cut-off member, adopting basic three-loop protection mode for cost-effective conventional surge protection.
With IP66 high waterproof and dustproof grade, UL94V-0 flame retardant housing, wide operating temperature range from -40°C to +80°C and applicable altitude up to 3000m, it is economical and durable, ideal for general municipal LED street lighting, outdoor lamps and cost-sensitive lightning protection projects.

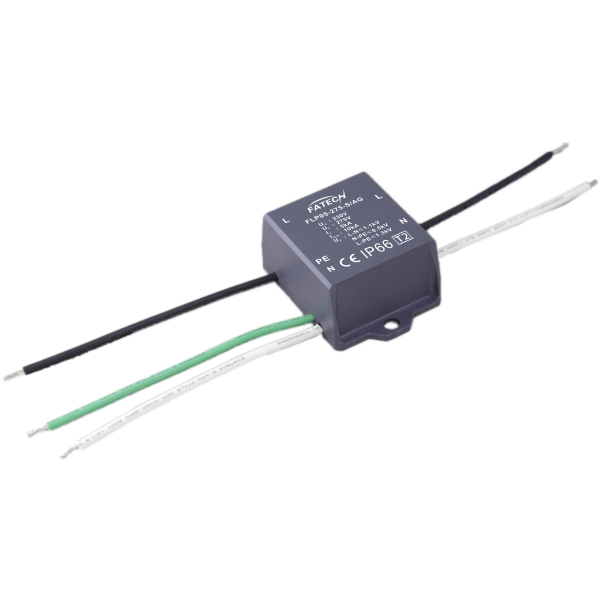

FATECH FLP05 series, including FLP05-150-P/BG, FLP05-150-S/BG, FLP05-275-P/BG, FLP05-275-S/BG, FLP05-320-P/BG, FLP05-320-S/BG, FLP05-385-P/BG and FLP05-385-S/BG, are Class II+III/C+D/T2+T3 compact combined surge protective devices specially designed for LED street light systems.
Suitable for LED street light networks with nominal voltages of 120V, 230V and 380V, this series features continuous operating voltages of 150V, 275V, 320V and 385V. With a maximum discharge current of 10kA and nominal discharge current of 5kA, it provides reliable multi-loop protection for L-N, N-PE and L-PE circuits, offering stable and graded voltage protection levels to limit transient overvoltage effectively.
It adopts fast response performance with L-N response time ≤25ns and L/N-PE response time ≤100ns, built-in thermal cut-off structure and 16A recommended backup fuse. This model is designed without failure indicator, delivering cost-effective basic surge protection.Featuring IP66 high weatherproof rating, UL94V-0 flame retardant housing, wide operating temperature from -40°C to +80°C and altitude up to 3000m, it is compact, durable and perfectly applicable for cost-sensitive outdoor LED street lighting and outdoor lighting surge protection projects.
