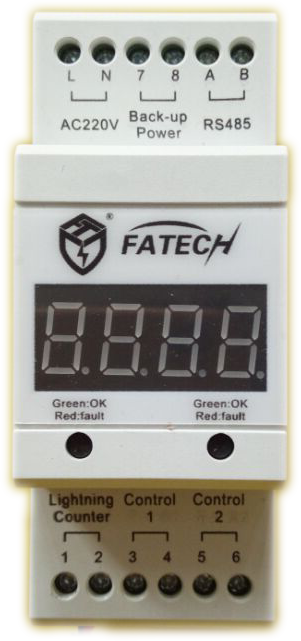

FLRC-D Digital Surge Counter

FLRC-D

FATECH FLRC-D is an LCD display lightning strike counter with inductive probe sampling.It operates at nominal voltage 220V, with minimum current sensitivity＞0.1kA (8/20μs, rise time≥8μs), backup power supply 6-12VAC and low power consumption＜0.5W. It supports power-off data retention, and data can be cleared by short-circuiting reset terminals.Adopting flame retardant plastic enclosure, IP20 protection degree, inductive probe diameter 9mm, applicable wire specification 0.5mm²-1.5mm², operating temperature range -40°C~+80°C and humidity＜90%(25°C), it records lightning events from 0 to 9999, with product width 36mm. It is suitable for lightning monitoring of power systems and lightning protection equipment.

-Digital type lightning counter.

-Installed together with SPD, or independently.

-Recording lightning/surge event times, monitoring SPD working status, and/or the front breaker working status.

-Online display status, terminals for monitor two groups circuit working status (two group SPDs, or one group SPD + one group MCB, or two MCBs working status.

-Data recorded accurately, 9999 times, data will not lose when power off.

-Terminal for connecting with back-up power,when power off, surge counter still can work.

-DIN rail installation.

Click to enlarge

Advantage

Stable & Reliable Surge Protection

Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.

Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.

Covers AC, DC, photovoltaic, PoE network, and signal surge protection solutions, widely used in solar systems, LED lighting, industrial control, security monitoring, buildings and infrastructure.

Durable Structure & Easy Installation

Certified Quality & Cost-Effective

Most core products have passed TUV, CE and international safety certifications, with strict quality control. Stable performance and reasonable pricing bring high cost-performance for global projects.

FLRC-D

UN : 220V

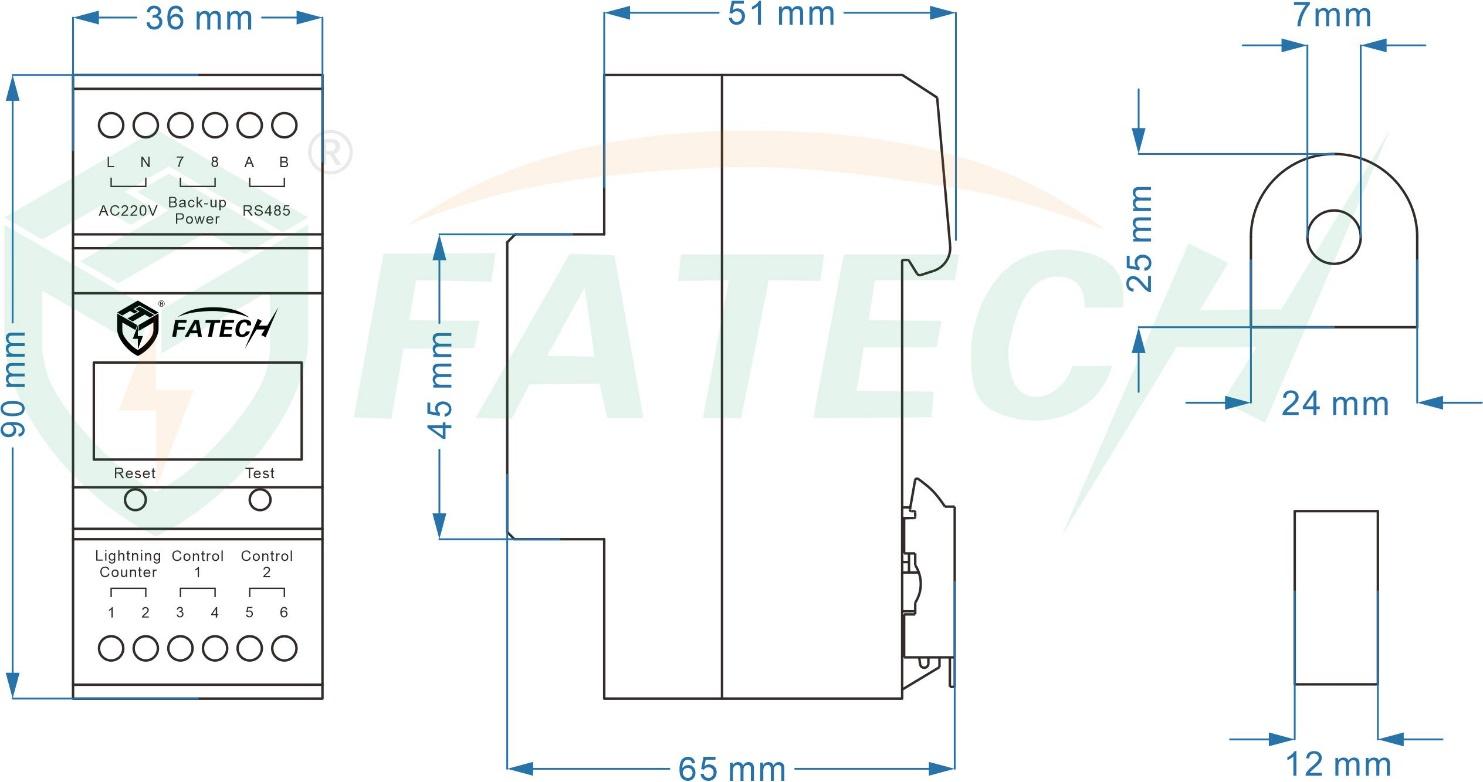

Dimension of FLRC-D

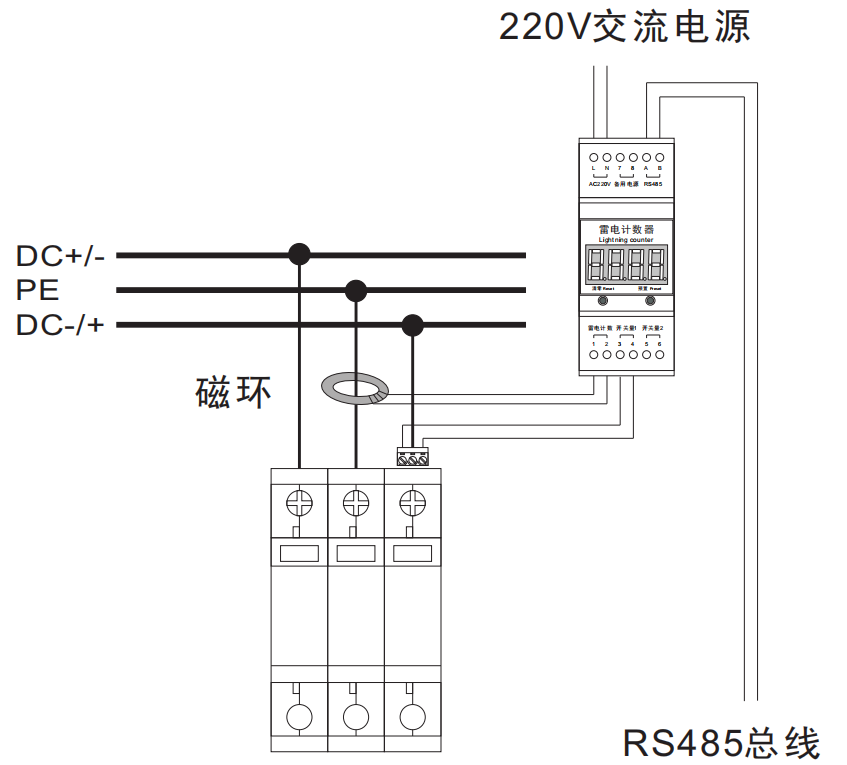

Installation of FLRC-D

Electrical parameters

Type	FLRC-D
Nominal Voltage(Un)	220V
Minimum Current Sensitivity(rise time≥8us)	＞0.1 kA(8/20us)
Back-up power	6-12VAC
Product power consumption	＜0.5W
Data record	Data will not lose in case of power off
Data clearing	Short-circuit the “Reset” terminals
Inductance size	Dia.9mm
Operation temperature(℃)	-40°C~+80°C
Humidity	＜90%(temp25°C)
Enclosure material	Plastic,Flame retardant
Degree of protection	IP20
Wiring spec.	0.5mm2-1.5mm2
Display Model	LCD
Indicator	Lightning Event 0-9999
Current Sample Mode	Inductive Prob
Dimension of counter(mm)	Width:36mm
