FLRC-S/R 4 Digits reset surge counter

FLRC-S/R

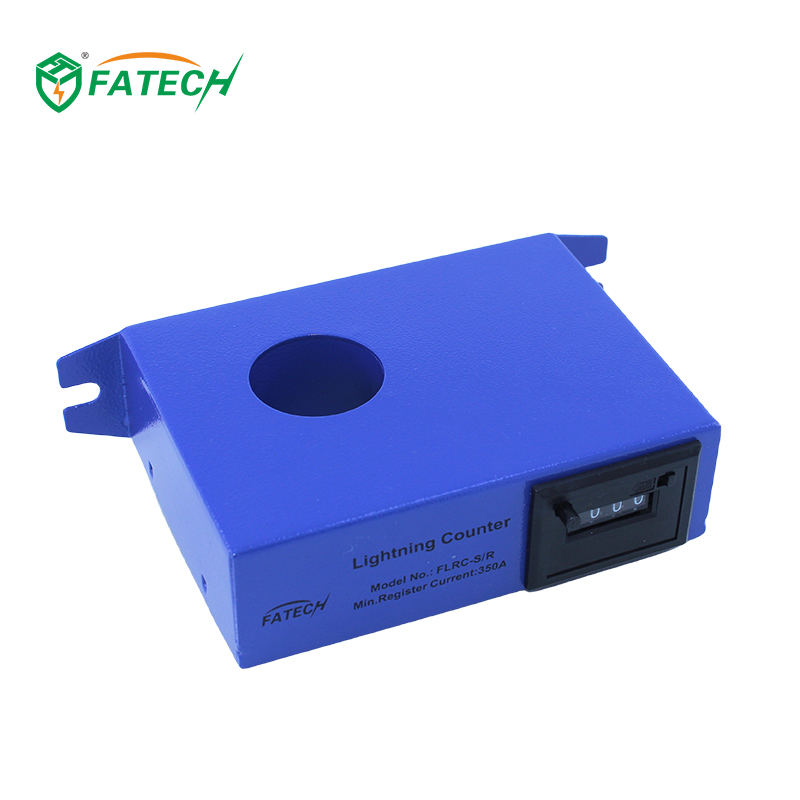

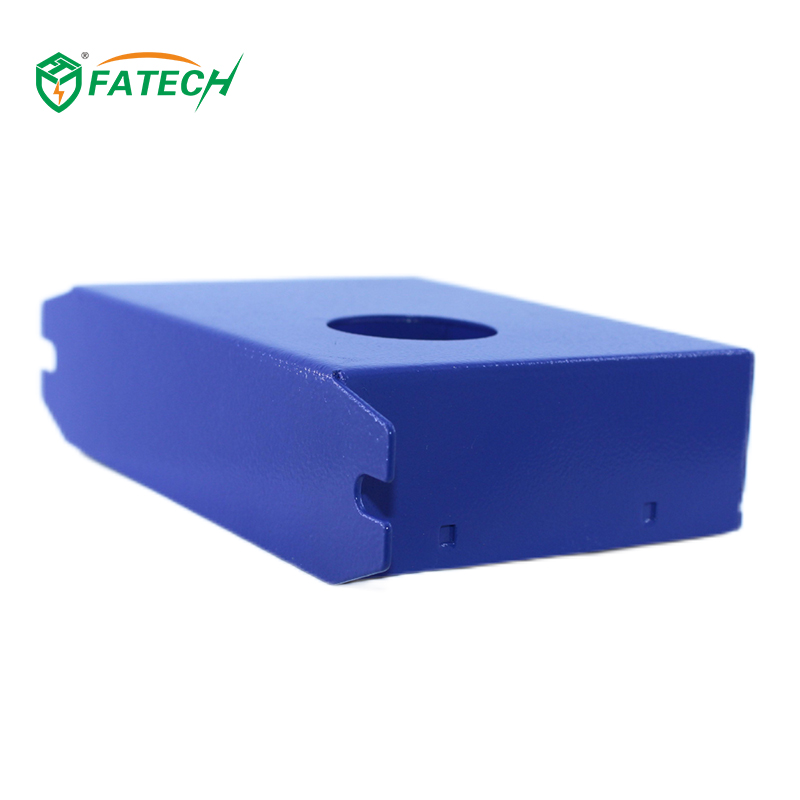

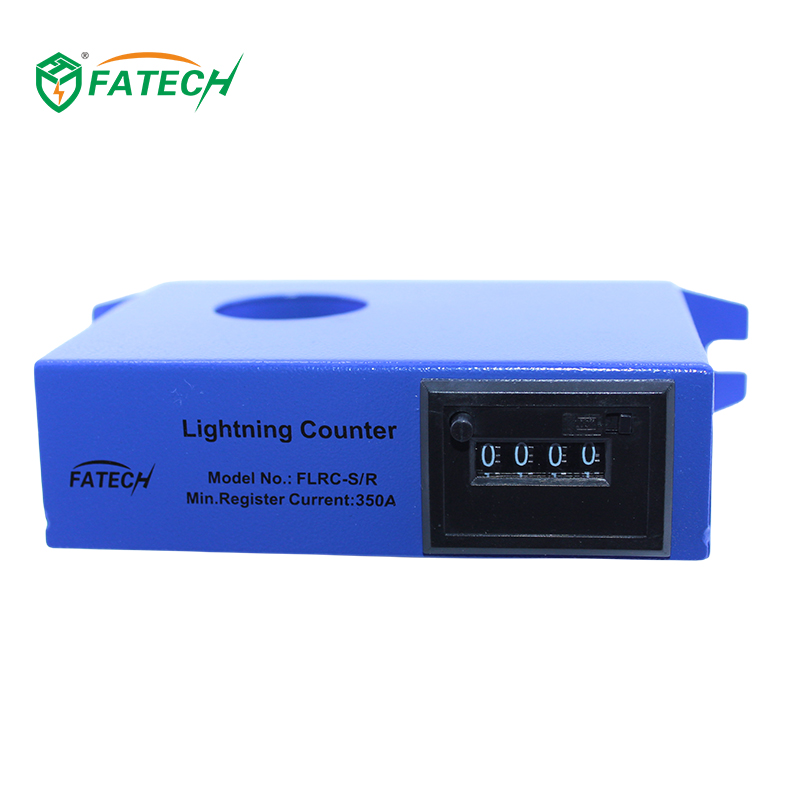

FATECH FLRC-S/R is a lightning strike counter with built-in inductive probe sampling, operating without battery or external power supply.It has minimum current sensitivity＞350A (rise time≥8μs), maximum detectable impulse current 100kA, impulse interval＞1s, and adopts electromechanical counter to record lightning events from 0 to 9999. Equipped with one-button reset function to clear reading to zero.Adopting metal plate enclosure, wide operating temperature range -20°C~+70°C, 30mm installation window, overall size 110×33×82mm and net weight 0.46kg, it is suitable for lightning monitoring of lightning protection systems, power lines and building earthing devices.

-Analogue type lightning counter.

-4 digits display (0-9999).

-With reset function by press a button to clear the number to”0″.

-No need battery /power supply.

-Metal plate.

-Easy installation and use.

-Installation window —30mm.

-Sensitive response and wide lightning current measuring range.

-Can be used with all kinds of lightning and surge protectors and equipment.

Get a Quote
Get a Quote
Product Brochure
Click to enlarge

Advantage

Stable & Reliable Surge Protection

Stable & Reliable Surge Protection

Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.
Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.

Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.

Covers AC, DC, photovoltaic, PoE network, and signal surge protection solutions, widely used in solar systems, LED lighting, industrial control, security monitoring, buildings and infrastructure.
Durable Structure & Easy Installation

Durable Structure & Easy Installation

Durable Structure & Easy Installation
Certified Quality & Cost-Effective

Certified Quality & Cost-Effective

Most core products have passed TUV, CE and international safety certifications, with strict quality control. Stable performance and reasonable pricing bring high cost-performance for global projects.

FLRC-S/R

Imax : 100kA

Dimension of  FLRC-S/R

Installation of FLRC-S/R



Electrical parameters

Model. No. FLRC-S/R
Minimum Current Sensitivity(rise time≥8us) ＞350A
Maximum Detectable Current(Imax) 100kA
Sequence of impulse ＞1s
Display Model Electromechanical Counter
Indicator Lightning Event 0-9999
Reset function Press one button to clear display number to”0″
Current Sample Mode Inductive Probe(Built-in)
Working mode No battery/No power supply needed
Operation temperature(℃) -20°C~+70°C
Dimension of installation window(mm) 30mm
Dimension of counter(mm) 110x33x82mm
Enclosure material Metal plate
Net Weight 0.46kg
