TUV certification 6 Digits Mechanical Lightning Strike Counter

FLRC-S/II

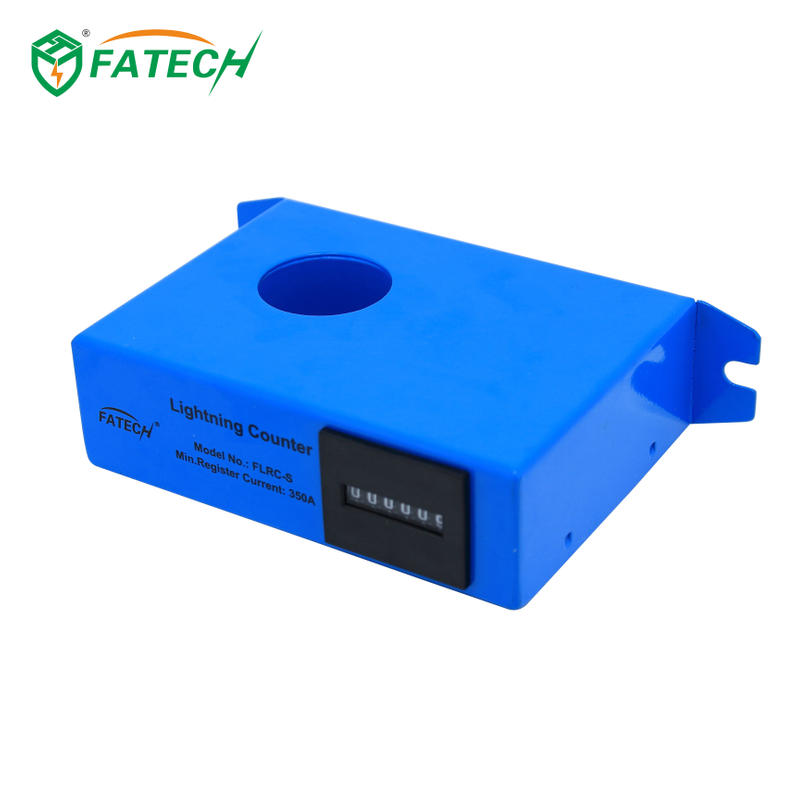

FATECH FLRC-S/II is a TUV certification 6 Digits Mechanical Lightning Strike Counter, with built-in inductive probe sampling, no battery and no external power supply required.It features high current sensitivity＞350A (rise time≥8μs), maximum detectable impulse current up to 100kA, impulse interval＞1s, and adopts electromechanical digital display to record lightning events from 0 to 999999.With metal plate enclosure, wide operating temperature range -20°C~+70°C, 30mm installation window size, compact body size 110×33×82mm and net weight 0.46kg, it is widely used for lightning strike monitoring on power distribution lines, lightning protection systems and building lightning devices.

-Analogue type lightning counter.

-6 digits display (0-999999).

-Long service life due to No battery need.

-Maintenance free.

-Countiong accurately.

-Sensitive response and wide lightning current measuring range.

-Easy to install and use.

-Can be used together with all kinds of lightning protectors and equipment.

Get a Quote
Get a Quote
Product Brochure
Click to enlarge

Advantage

Stable & Reliable Surge Protection

Stable & Reliable Surge Protection

Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.
Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.

Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.

Covers AC, DC, photovoltaic, PoE network, and signal surge protection solutions, widely used in solar systems, LED lighting, industrial control, security monitoring, buildings and infrastructure.
Durable Structure & Easy Installation

Durable Structure & Easy Installation

Durable Structure & Easy Installation
Certified Quality & Cost-Effective

Certified Quality & Cost-Effective

Most core products have passed TUV, CE and international safety certifications, with strict quality control. Stable performance and reasonable pricing bring high cost-performance for global projects.

FLRC-S/II

Imax : 100kA

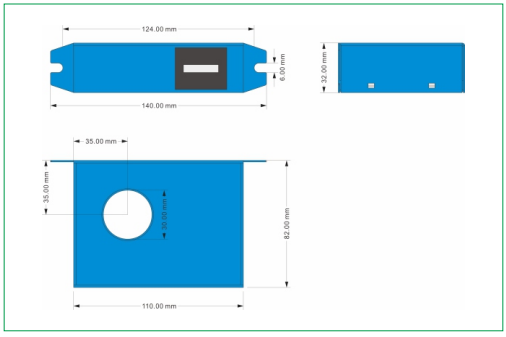

Dimension of  TUV certification 6 Digits Mechanical Lightning Strike Counter FLRC-S/II

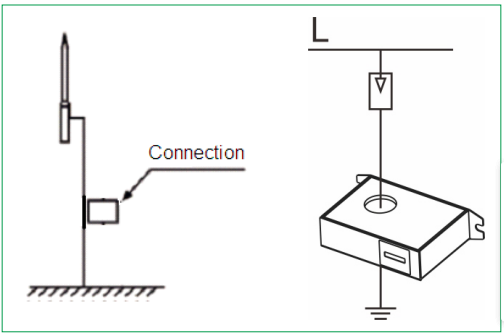

Installation of TUV certification 6 Digits Mechanical Lightning Strike Counter FLRC-S/II

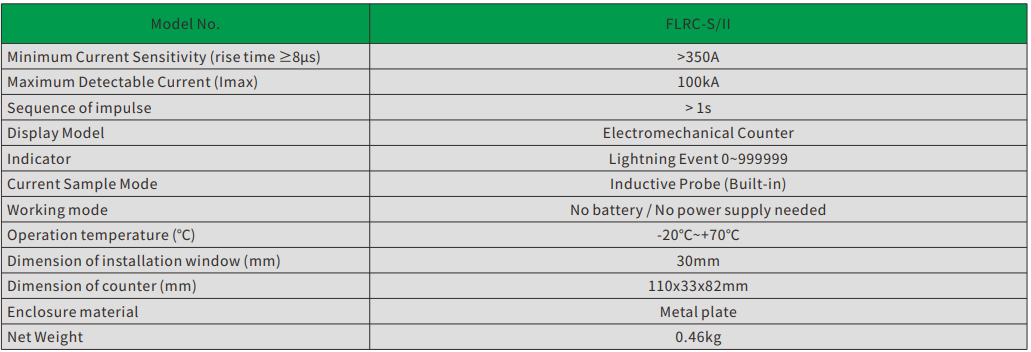

Electrical parameters

Model. No. FLRC-S/II
Minimum Current Sensitivity(rise time≥8us) ＞350A
Maximum Detectable Current(Imax) 100kA
Sequence of impulse ＞1s
Display Model Electromechanical Counter
Indicator Lightning Event 0-999999
Current Sample Mode Inductive Probe(Built-in)
Working mode No battery/No power supply needed
Operation temperature(℃) -20°C~+70°C
Dimension of installation window(mm) 30mm
Dimension of counter(mm) 110x33x82mm
Enclosure material Metal plate
Net Weight 0.46kg
