FV03D/2-XXXL Imax6KA surge protection device

FV03D/2-XXXL
FATECH FV03D/2-L series consists of FV03D/2-150L, FV03D/2-275L, FV03D/2-320L and FV03D/2-440L, belonging to Class II+III/C+D/Type2+3 integrated surge protective devices.
Designed for TT and TN power distribution systems, this two-pole SPD features L-PE and N-PE protection modes, suitable for nominal system voltages of 110/220V and 220/380V, with maximum continuous operating voltage options of 150V, 275V, 320V and 385V. It offers maximum discharge current 6kA and nominal discharge current 3kA, with excellent voltage protection level as low as ≤0.5kV to ≤1.2kV for effective transient overvoltage suppression.
It provides segmented response performance with L-N response time ≤25 ns and L/N-PE ≤100 ns. With isolation resistance over 100 MΩ and a 16A recommended backup fuse, it supports fine wire connection from 0.3mm² to 2.0mm² and standard 35mm DIN rail mounting.This model is fitted with LED indicator light for working status display and comes without remote control contact. Adopting UL94V-0 flame retardant housing and IP20 protection degree, it operates reliably at -40°C~+80°C, 30%~90% humidity and altitude up to 3000m. Compact and cost-effective, it is ideal for terminal surge protection in household, commercial and lightweight industrial low-voltage distribution systems.

-Visible fault indication -Green on: Normal;Green off: Fault.

-For using in the lightning protection zones concept at boundary 2-3.

-One-One correspondence reliable screening to ensure reliability.

-Lower voltage protection level Up.

-Imax, 6kA.

Get a Quote
Get a Quote
Product Brochure
Click to enlarge

Advantage

Stable & Reliable Surge Protection

Stable & Reliable Surge Protection

Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.
Wide Application Compatibility

Wide Application Compatibility

Covers AC, DC, photovoltaic, PoE network, and signal surge protection solutions, widely used in solar systems, LED lighting, industrial control, security monitoring, buildings and infrastructure.
Durable Structure & Easy Installation

Durable Structure & Easy Installation

Features rugged housing (including aluminum enclosure for outdoor models), DIN‑rail mounting, pluggable design and compact size for easy installation, wiring and maintenance in various working environments.
Certified Quality & Cost-Effective

Certified Quality & Cost-Effective

Most core products have passed TUV, CE and international safety certifications, with strict quality control. Stable performance and reasonable pricing bring high cost-performance for global projects.

FV03D/2-150L

UN : 110/220V

Uc : 150V

In : 3kA

Imax : 6kA

Up ≤ 0.5kV

FV03D/2-275L

UN : 220/380V

Uc : 275V

In : 3kA

Imax : 6kA

Up ≤ 0.8kV

FV03D/2-320L

UN : 220/380V

Uc : 320V

In : 3kA

Imax : 6kA

Up ≤ 1.0kV

FV03D/2-440L

UN : 220/380V

Uc : 440V

In : 3kA

Imax : 6kA

Up ≤ 1.2kV

Coding system of surge suppressor FV03D/2-XXXL

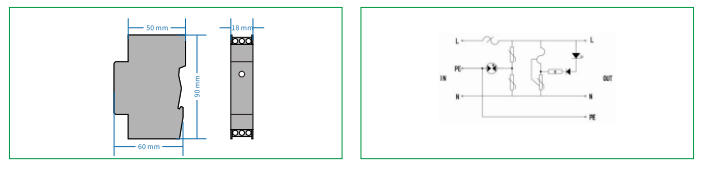

Dimension and circuit drawing of surge suppressor FV03D/2-XXXL

Electrical parameters

Model. No. FV03D/2-150L FV03D/2-275L FV03D/2-320L FV03D/2-440L
Test class IEC/EN/VDE ClassII+III/C+D/Type2+3
Type of Network TT,TN
Protection mode L-PE,N-PE
Nominal Voltage 50(60)Hz UN 110/220V 220/380V 220/380V 220/380V
Rated Voltage (Max. Cont. Operating Voltage) UC 150V 275V 320V 385V
Maximum discharge current (8/20μs) Imax 6 kA
Nominal discharge current (8/20μs) In 3 kA
Voltage protection level Up ≤0.5 kV ≤0.8 kV ≤1.0 kV ≤1.2 kV
Open circuit voltage Uoc 6 kV
Response time tA L-N:≤25 ns,L/N-PE:≤100 ns
Recommended back-up fuse 16A
Isolation resistance ＞100 MΩ
I/O Connections Multi core wire:0.3mm2-2.0mm2
Mounting 35mm Symmetrical rail (EN50022/DIN46277-3)
Operation temperature range/humidity/altitude -40°C~+80°C / 30%~90% / 3000m
Degree of protection IP20
Housing material UL94V-0
Disconnection indicator LED indicator light
Remote control contact No
