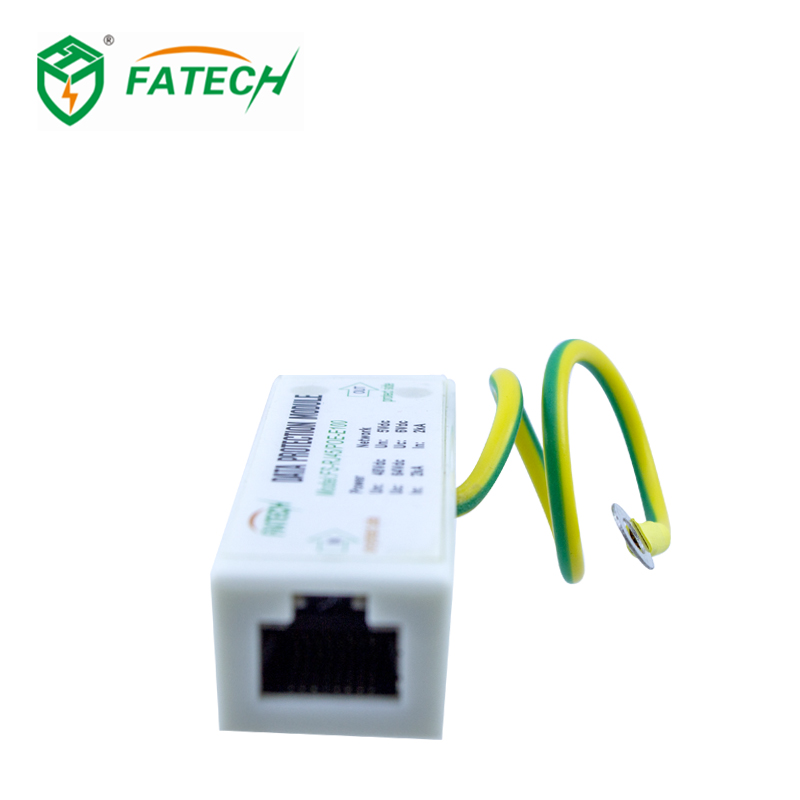

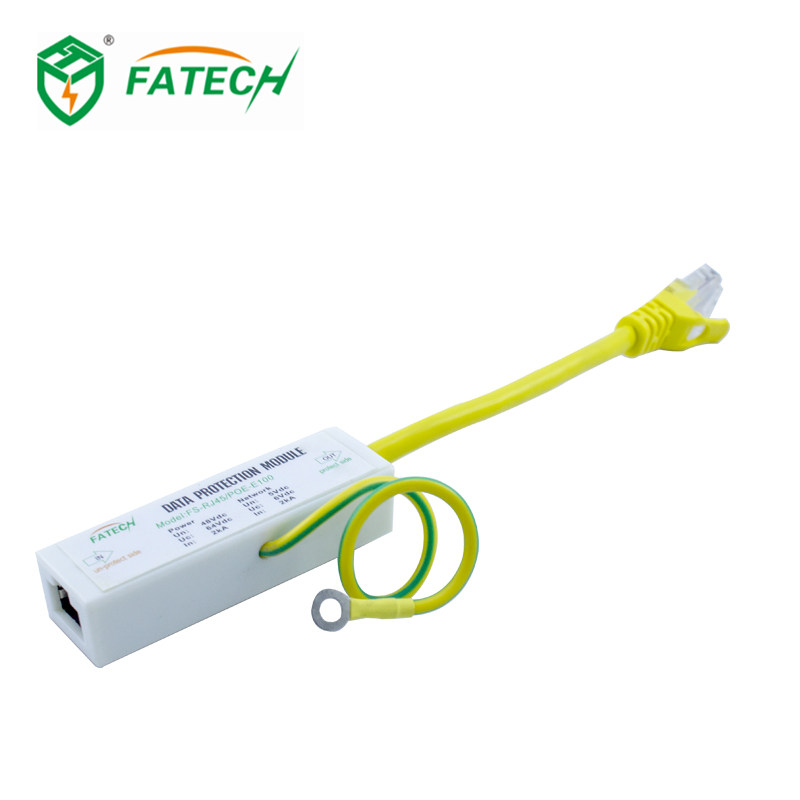

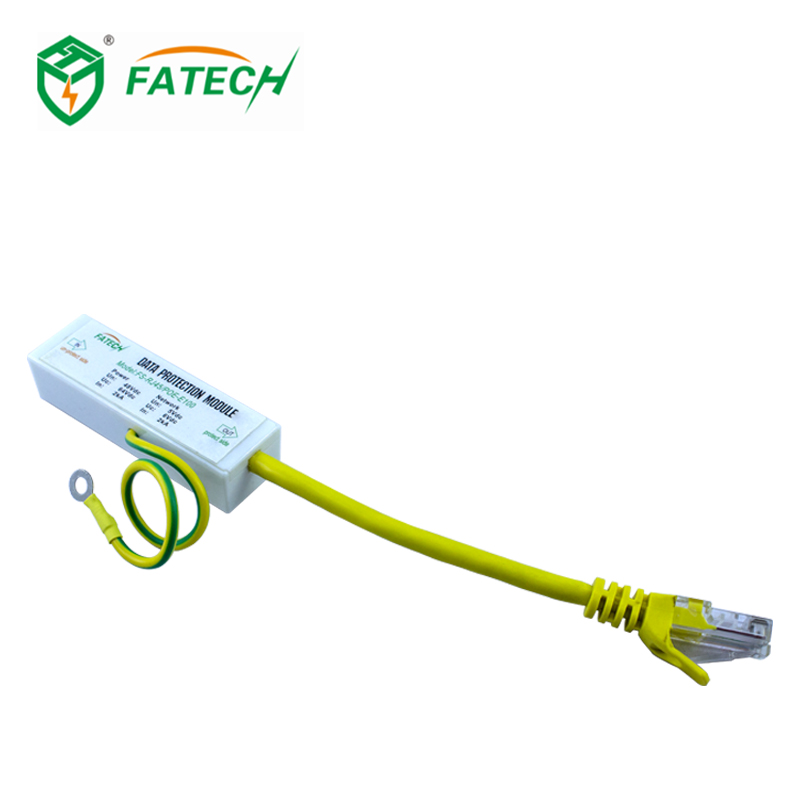

FS-RJ45/POE-E100 Small size surge arrester for signal system

FS-RJ45/POE-E100

FATECH FS-RJ45/POE-E100 is a PoE surge protector for RJ45 Ethernet and PoE-powered devices. It protects IP cameras, wireless APs and network equipment from lightning and surge damage, and supports stable data transmission with easy installation.

-RJ45 PoE surge arrester 100M, suitable for application of PoE cable-powered server, wireless AP, network cameras,network switches and other communications equipment supply, network signal line surge protection, integrated design, easy installation.

-Adopt power supply + signal surge protection integrated design.Install in series, RJ45 interface

-Use high quality main component with excellent performance.

-Small insertion loss, good trnasmission rate.

-Low residual voltage, efficient surge protection effect.

-Fast response, stable performance, reliable working.

Click to enlarge

Advantage

Stable & Reliable Surge Protection

Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.

Wide Application Compatibility

Covers AC, DC, photovoltaic, PoE network, and signal surge protection solutions, widely used in solar systems, LED lighting, industrial control, security monitoring, buildings and infrastructure.

Durable Structure & Easy Installation

Features rugged housing (including aluminum enclosure for outdoor models), DIN‑rail mounting, pluggable design and compact size for easy installation, wiring and maintenance in various working environments.

Certified Quality & Cost-Effective

Most core products have passed TUV, CE and international safety certifications, with strict quality control. Stable performance and reasonable pricing bring high cost-performance for global projects.

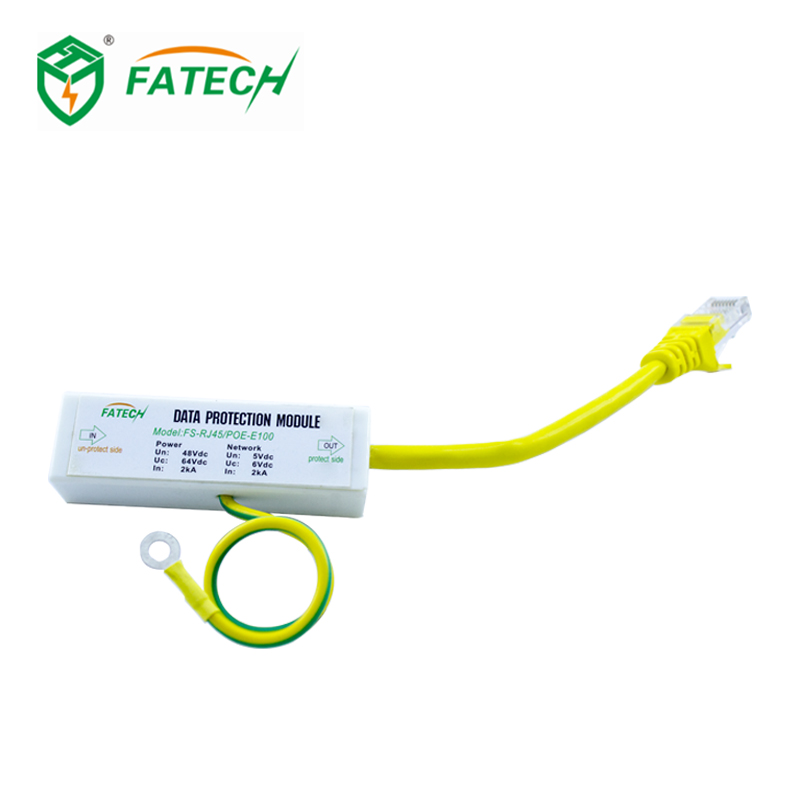

FS-RJ45/POE-E100

Signal Line Power Supply Line

UN :5 V dc 48v

Uc : 6 V dc 64v

In : 2.5kA 0.5kA

Imax : 5.0kA 1.0kA

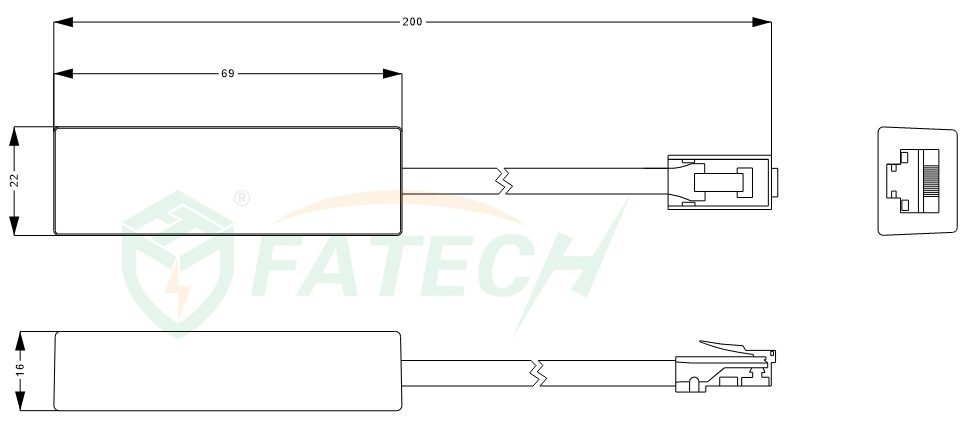

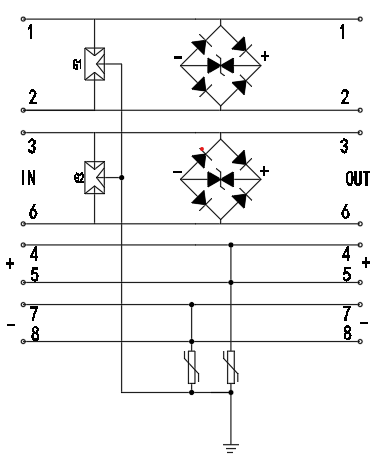

Dimension and circuit drawing of surge arrester for signal system FS-RJ45/POE-E100

Electrical parameters

Model. No.		FS-RJ45/POE-E100
Type of Network		Network signal transmission system
Line		Power Supply Line	Signal Line
Nominal voltage 50(60)Hz UN		48V	5V
Rated Voltage (Max. Cont. Operating Voltage) Uc		60V	6V
Max. discharge current (8/20us)Imax		1000A	5kA
Nominal discharge current (8/20us) IN		500A	2.5kA/line3
Voltage protective level Up	L-L	≤150V	15V
	L-PE	≤550V	450V
Adapt transmission rate		——	100Mbit/s
Insertion loss		——	≤0.5Mbit/s
Interface	IN	RJ45
	OUT	RJ45
Mounting		Symmetrical rail(EN50022-DIN46277-3)
Response time tA		≤10ns
Operation temperature range/humidity /altitude		-40°C~+80°C / 30%~90% / 3000m
Housing material		UL94 V-0
Degree of protection		IP20
