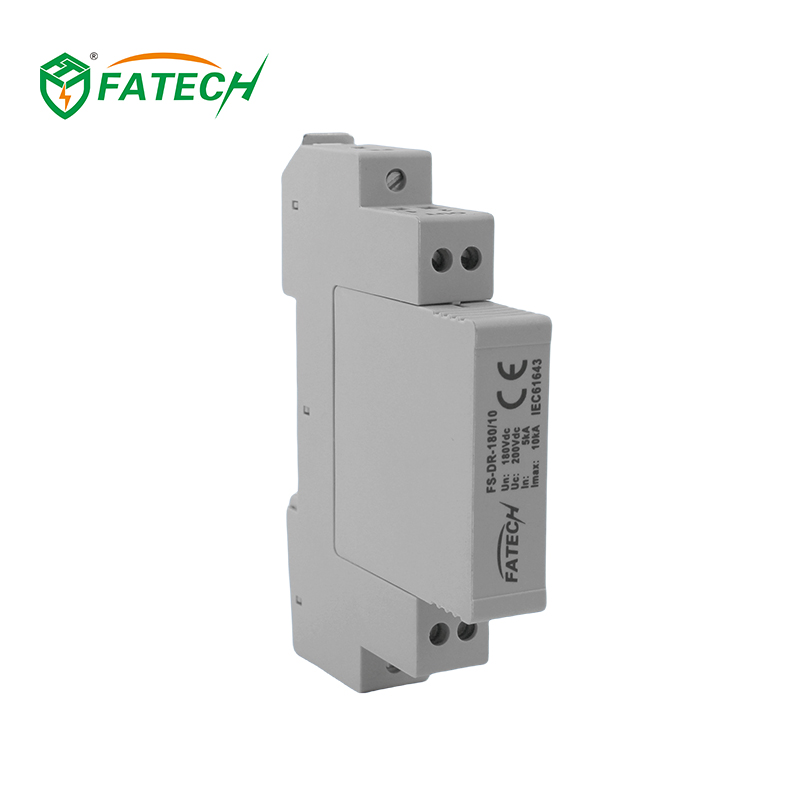

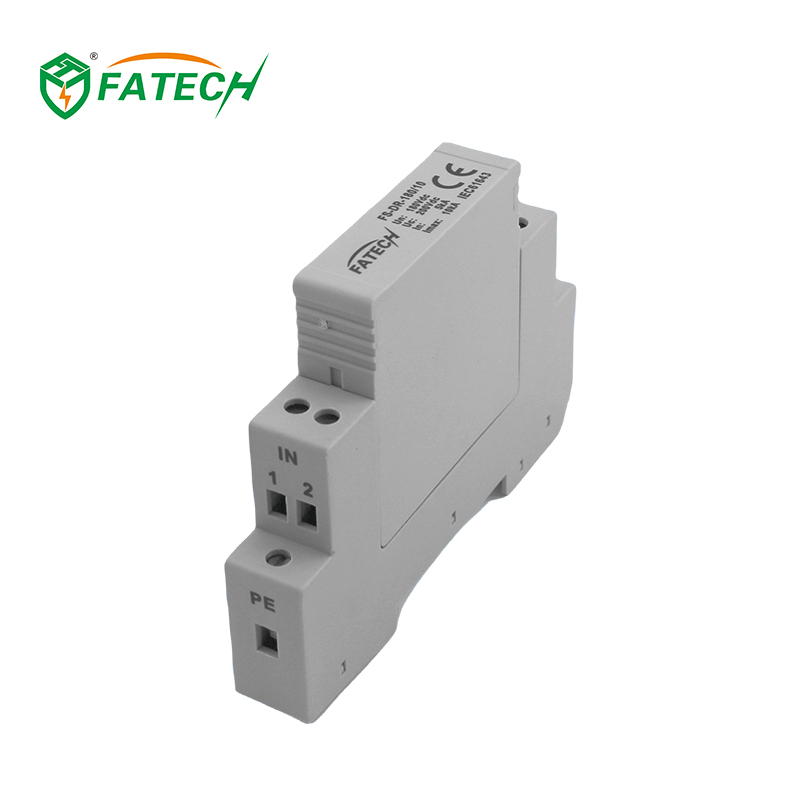

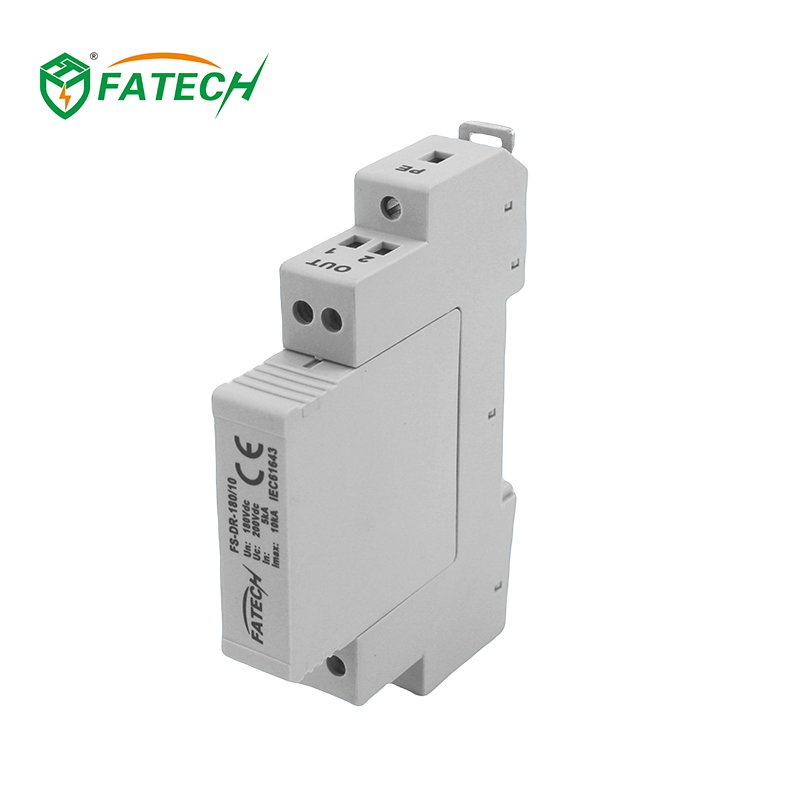

FS-DR-12/2.9 12 DIN rail Signal voltage surge suppressor

FS-DR12/2.9

FS-DR-12/2.9 is a 12V DC control signal surge protector designed for street wind energy systems, sensors and monitoring equipment. It guards against lightning and transient surges to ensure stable operation of outdoor wind power devices.

-Din rail signal surge protective device are applied to control signal double wire circuit in LPZ0 to LPZ3,e.g. 4~20mA circuit, RS485 circuit, RS422 circuit,gas detector, car-park system, CCTV remote monitor,remote control circuits.

-Common and difference surge protection mode, excellent performance.

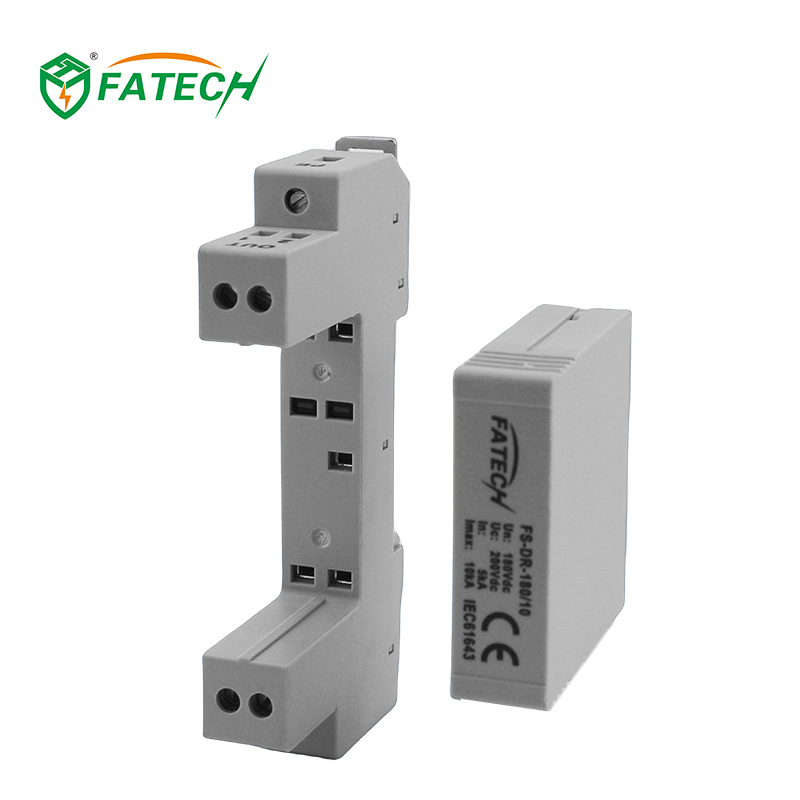

-The pluggable module allows a fast replacement in case of fail.

-The grounding is realized through an earthing-clip onthe DIN-Rail and/or earthing – clamp.

-No limiting in operating current due to parallel connectingmethod.

-Mounting on 35mm Rail, small space.

Click to enlarge

Advantage

Stable & Reliable Surge Protection

Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.

Wide Application Compatibility

Covers AC, DC, photovoltaic, PoE network, and signal surge protection solutions, widely used in solar systems, LED lighting, industrial control, security monitoring, buildings and infrastructure.

Durable Structure & Easy Installation

Features rugged housing (including aluminum enclosure for outdoor models), DIN‑rail mounting, pluggable design and compact size for easy installation, wiring and maintenance in various working environments.

Certified Quality & Cost-Effective

Most core products have passed TUV, CE and international safety certifications, with strict quality control. Stable performance and reasonable pricing bring high cost-performance for global projects.

FS-DR12/2.9

UN :12V dc

Uc : 15V dc

In : 5kA

Imax : 10kA

Dimension and circuit drawing of signal surge arrester FS-DR12/2.9

Electrical parameters

Model. No.		FS-DR-12/2.9
Type of Network		Signal transmission system
Nominal voltage 50(60)Hz UN		12.0V
Rated Voltage (DC Max. Cont. Operating Voltage) Uc		14.5V
Rated Voltage (AC Max. Cont. Operating Voltage) Uc		10.2V
Rated current IL		0.5A
Nominal discharge current (8/20us) IN		5.0kA
Voltage protective level(IimpD1) Up	L-L	≤70V
	L-PE	≤60V
Voltage protective level(1kV/μsC3) Up	L-L	≤38V
	L-PE	≤19V
Each line sereis resistance		1.5Ω
Band width	L-L	2.9MHz
Capacitance	L-L	≤1.0nF
	L-PE	≤2.0nF
I/O Connections		Multi core wire:0.5mm2-2.5mm2
Mounting		35mm Symmetrical rail(EN50022/DIN46277-3)
Response time tA		≤10ns
Operation temperature range/humidity /altitude		-40°C~+80°C / 30%~90% / 3000m
Housing material		UL94 V-0
Degree of protection		IP20
