Model FV05B+C/5Y-1000PVNS is a Type 1+2 (Class I+II) DC surge protection device (SPD) designed for 1000 Vdc photovoltaic systems, complying with EN50539-11, IEC61643-31 and DIN VDE0675-6 B+C standards.
It provides three protection modes: (+)-PE, (-)-PE and (+)-(-). Featuring 5 kA impulse discharge current (10/350μs), 20 kA nominal discharge current (8/20μs) and ≤3800 V voltage protection level, it delivers fast ≤25 ns response time with low leakage and standby power loss.
Equipped with mechanical fault indicator (green for normal, red for replacement) and remote alarm contact, this IP20 gray SPD uses UL94 V-0 flame-retardant housing, mounts on standard 35mm DIN rails indoors, accepts 6–35 mm² connecting cables, and works reliably at -40°C to +80°C up to 2000 m altitude.

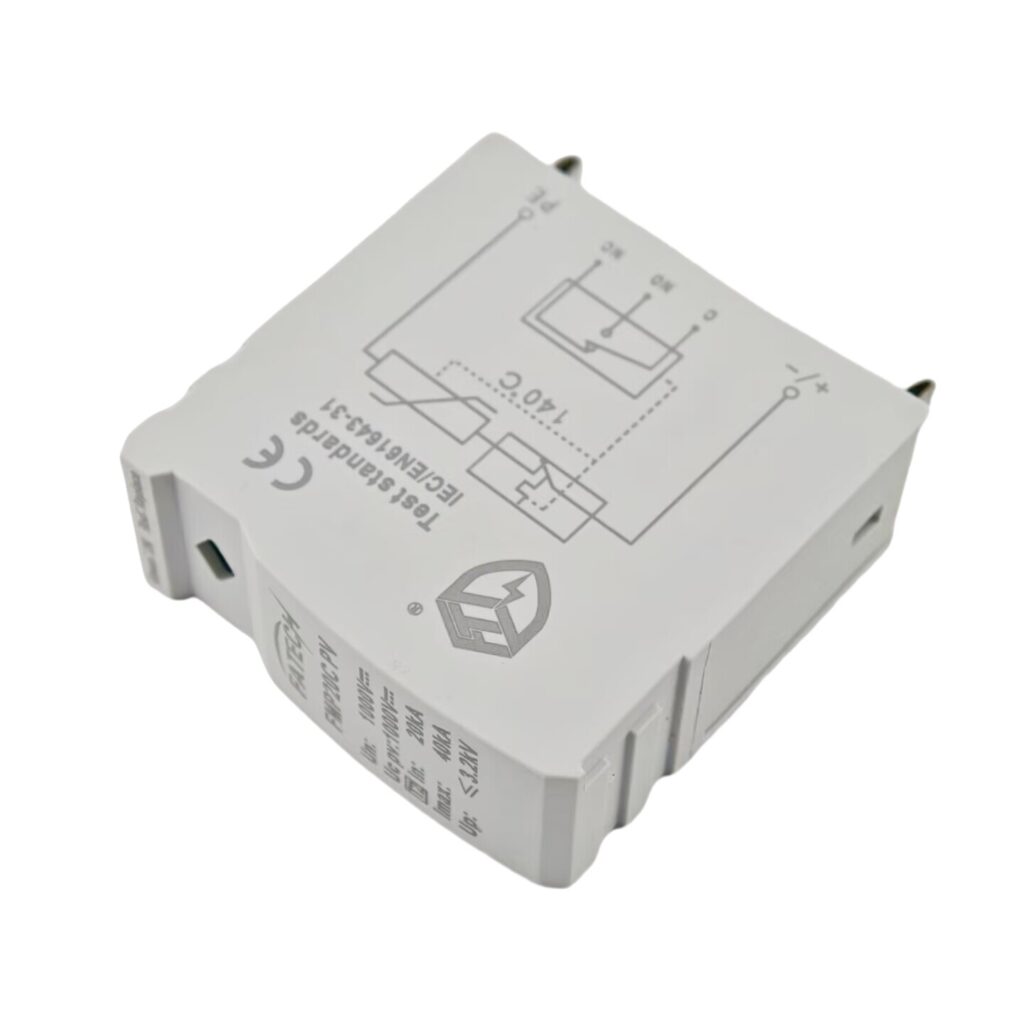

FATECH FMP10D-500PVS, FMP10D-670PVS and FMP20c-1000PVS are professional photovoltaic DC surge protective devices, specially developed for the DC side of photovoltaic systems.Covering mainstream PV DC rated voltages of 500Vdc, 600Vdc and 1000Vdc, the series adopts comprehensive protection modes including (+/-)-(-/+), (+/-)-PE and (-/+)-PE. FMP10D series belongs to Class III/D/Type3, while FMP20c-1000PVS is Class II/C/Type2, meeting different lightning protection grading requirements.With Imax up to 20kA and 40kA, nominal discharge current 10kA and 20kA, and voltage protection level as low as ≤1.8kV~≤3.2kV, they feature ultra‑high isolation resistance over 1000MΩ, extremely low leakage current and standby power consumption. The segmented response time reaches ≤25 ns for pole-to-pole and ≤100 ns for pole-to-earth protection.Designed for PCB board welding installation, equipped with UL94V‑0 flame retardant housing, mechanical status indicator (Green: OK, Red: Replace) and integrated remote control contact, this PV SPD series ensures high stability and safety in harsh outdoor temperature environments, ideal for built-in surge protection of photovoltaic modules and DC combiner boxes.
