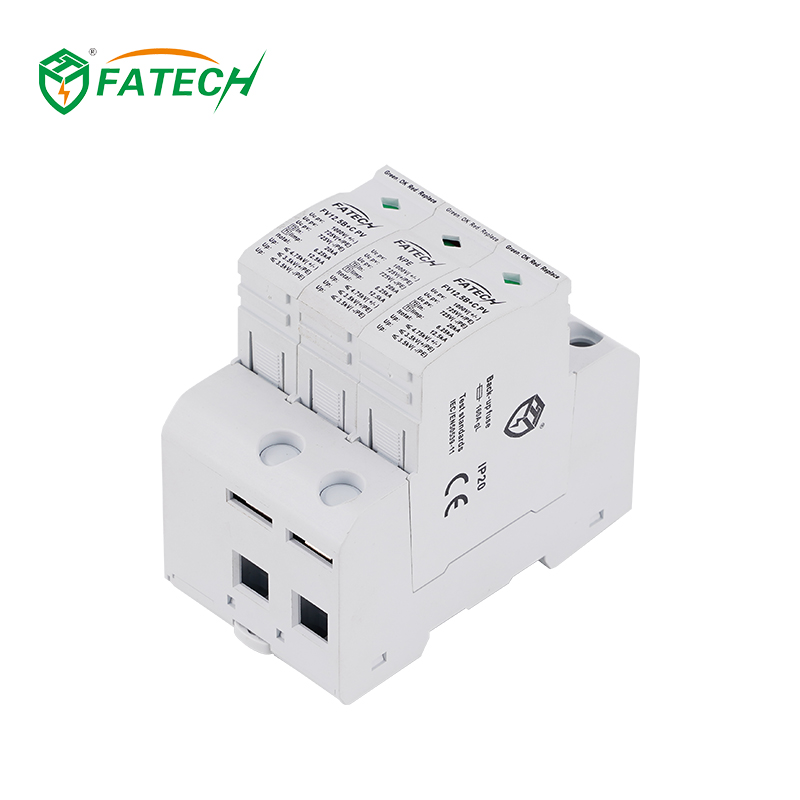

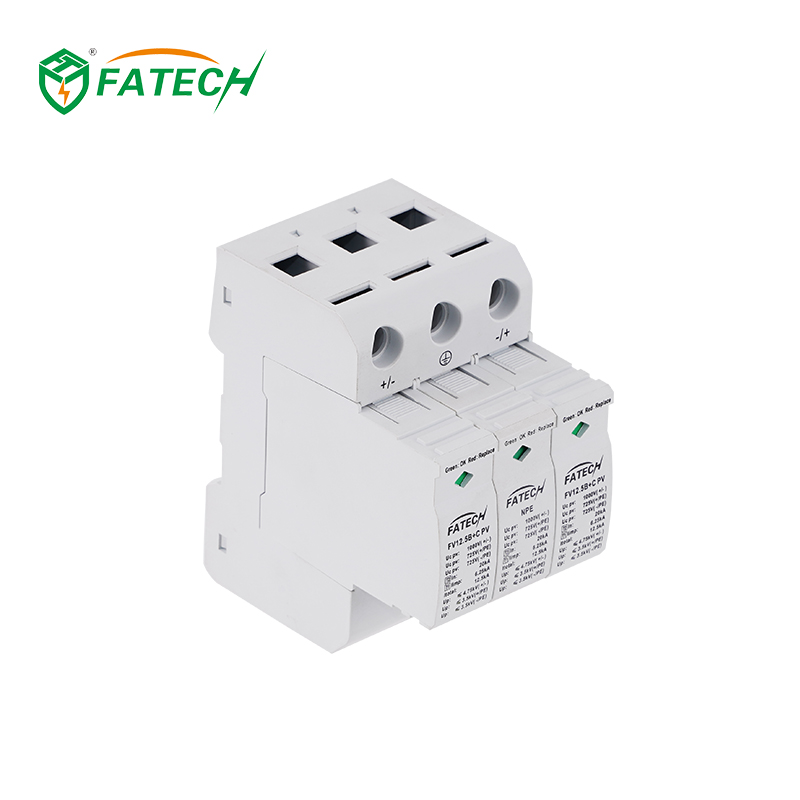

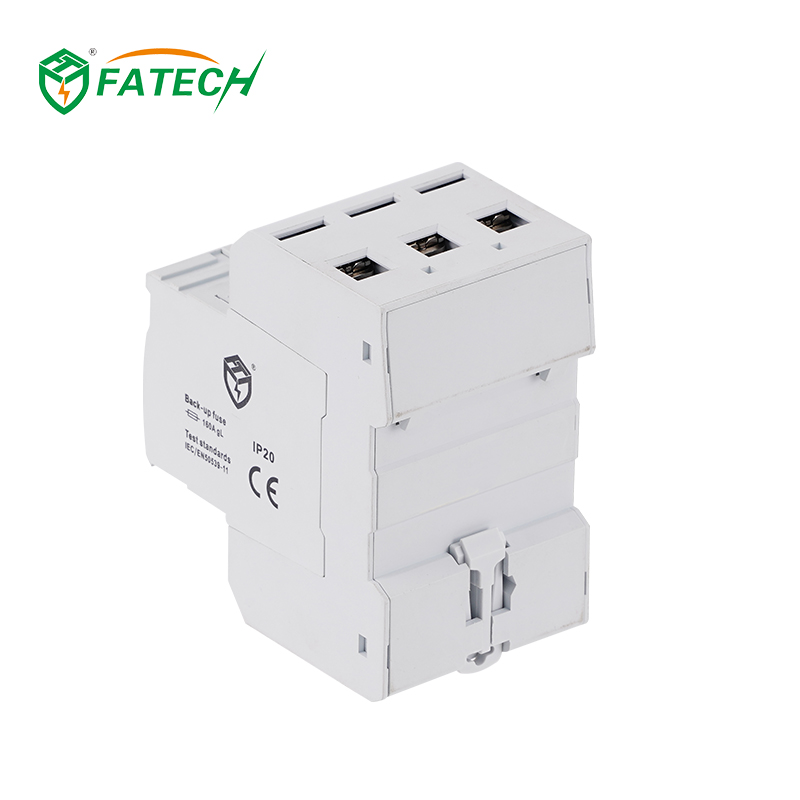

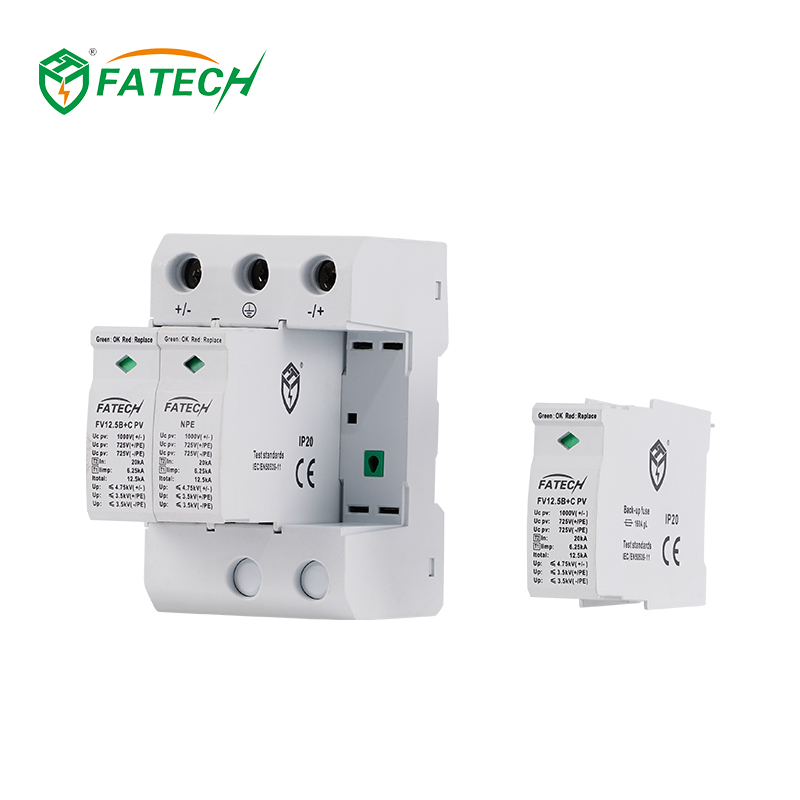

TUV type 1+2 photovoltaic PV system surge protection device

FV12.5B+C/2+NPE-1000PVN(S)
FATECH FV12.5B+C/2+NPE-1000PVNS is a TUV type 1+2 photovoltaic PV system surge protection device with remote signaling contact for 1000V solar systems. Integrated with both Class I and Class II surge protection, it offers high-level lightning protection for PV power stations and DC power distribution systems. The remote signaling function allows real-time monitoring of SPD status. This product is ideal for large-scale photovoltaic plants, industrial solar systems, and critical DC power equipment.

-DC surge Protective decice specially used for photovoltaic system less than 1000Vdc.

-The core parts are metal oxide vristor components with high discharge capacity.

-With reliable control thanks to Thermo Dynamic Control disconnector.

-Without remote signaling contact for control device.

-Fault indication via red mark in the inspection windows.

Get a Quote
Get a Quote
Product Brochure
Click to enlarge

Advantage

Stable & Reliable Surge Protection

Stable & Reliable Surge Protection

Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.
Wide Application Compatibility

Wide Application Compatibility

Covers AC, DC, photovoltaic, PoE network, and signal surge protection solutions, widely used in solar systems, LED lighting, industrial control, security monitoring, buildings and infrastructure.
Durable Structure & Easy Installation

Durable Structure & Easy Installation

Features rugged housing (including aluminum enclosure for outdoor models), DIN‑rail mounting, pluggable design and compact size for easy installation, wiring and maintenance in various working environments.
Certified Quality & Cost-Effective

Certified Quality & Cost-Effective

Most core products have passed TUV, CE and international safety certifications, with strict quality control. Stable performance and reasonable pricing bring high cost-performance for global projects.
FV12.5B+C/2+NPE-1000PVNS

UN : 1000Vdc

Uc pv : 1000Vdc

In : 20kA

Itotal : 12.5kA

Iimp : 6.25kA

Up ≤ 4.75kV

Coding system of TUV type 1+2 photovoltaic PV system surge protection device

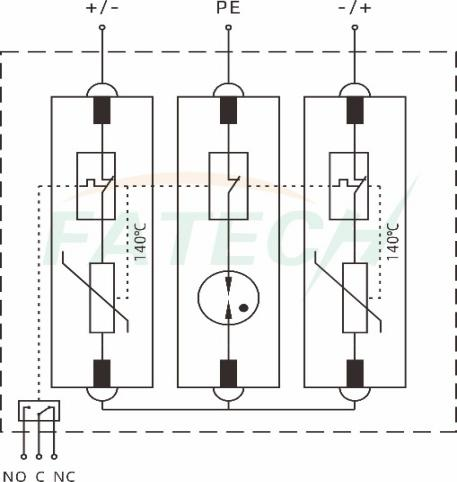

 Circuit drawing of  TUV type 1+2 photovoltaic PV system surge protection device FV12.5B+C/2+NPE-1000PVNS

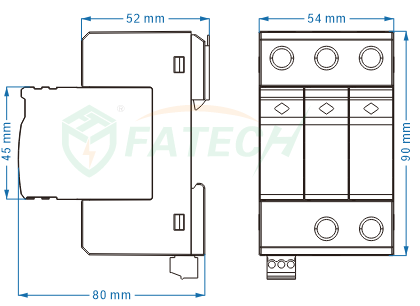

Dimension of TUV type 1+2 photovoltaic PV system surge protection device FV12.5B+C/2+NPE-1000PVNS

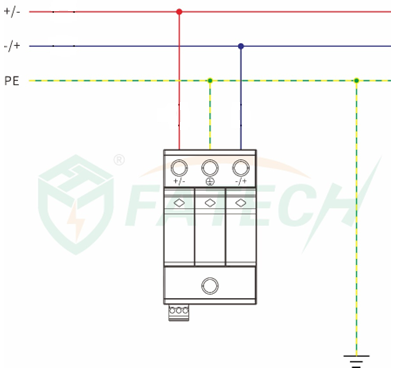

Installation of TUV type 1+2 photovoltaic PV system surge protection device FV12.5B+C/2+NPE-1000PVNS

Electrical parameters

Model. No. FV12.5B+C/2+NPE-1000PVN(S)
SPD protection conforms to EN50539-11/IEC61643-31 Type 1+2
SPD installation type conforms to EN50539-11/IEC61643-31 Class I+II
Protection level conforms to DIN VDE0675-6 B+C
Type of Network Photovoltaic systems DC side
Protection modes (+/-)-PE , (-/+)-PE
Nominal Voltage  UN 1000 Vdc
Maximum continuous operating voltage for PV application UCPV 1000 Vdc(+/-),725V(+/PE,-/PE)
Continuous operating current ICPV <20 μA
Residual current IPE ≤20 μA DC,≤500 μA AC
Standby power consumption PC ≤25 mVA
Nominal discharge current (8/20μs) In 20 kA
Impuse discharge current (10/350μs) Iimp 6.25 kA
Total Impuse discharge current (10/350μs) Itotal 12.5 kA
Voltage protection level Up ≤4.75 kV(+/-),3.5kV(+/PE,-/PE)
Isolation resistance Risol ＞1000 MΩ
Response time tA ≤25 ns(+/-),≤100ns(+/PE,-/PE)
Recommend back-up fuse 160A
Isolation resistance ＞102MΩ
I/O Connections Multi core wire:4mm2-25mm2,Single core wire:4mm2-35mm2
Mounting Symmetrical rail(EN50022/DIN46277-3)
Operation temperature range/humidity/altitude -40℃～+80℃/30%～90%/≤2000m
Degree of protection IP20
Housing material UL94V-0
Disconnection indicator Mechanical indicator(Green: OK, Red: Replace)
Remote control contact YES
Minimum area of connecting cable 6 mm2
Maximum area of connecting cable 35 mm2
Installation location Inside
Mounting type 35mm DIN rail acc. to EN 60715
Color Gray
