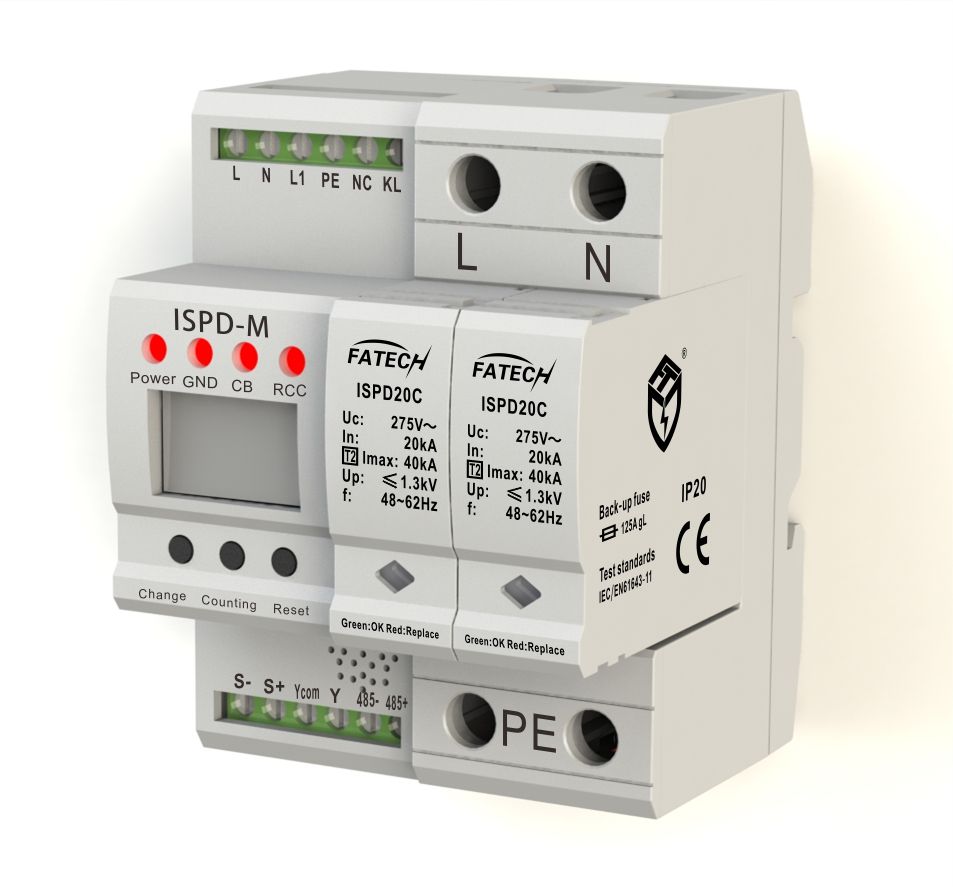

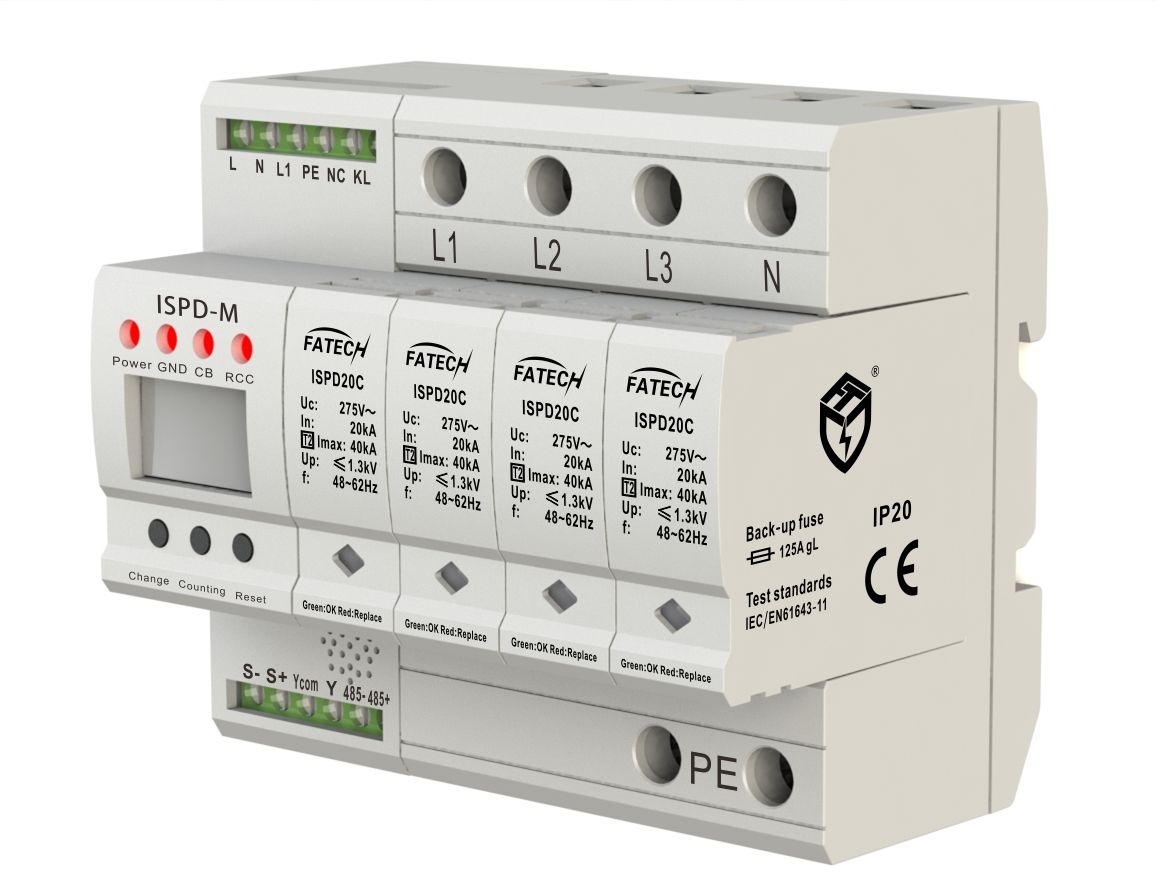

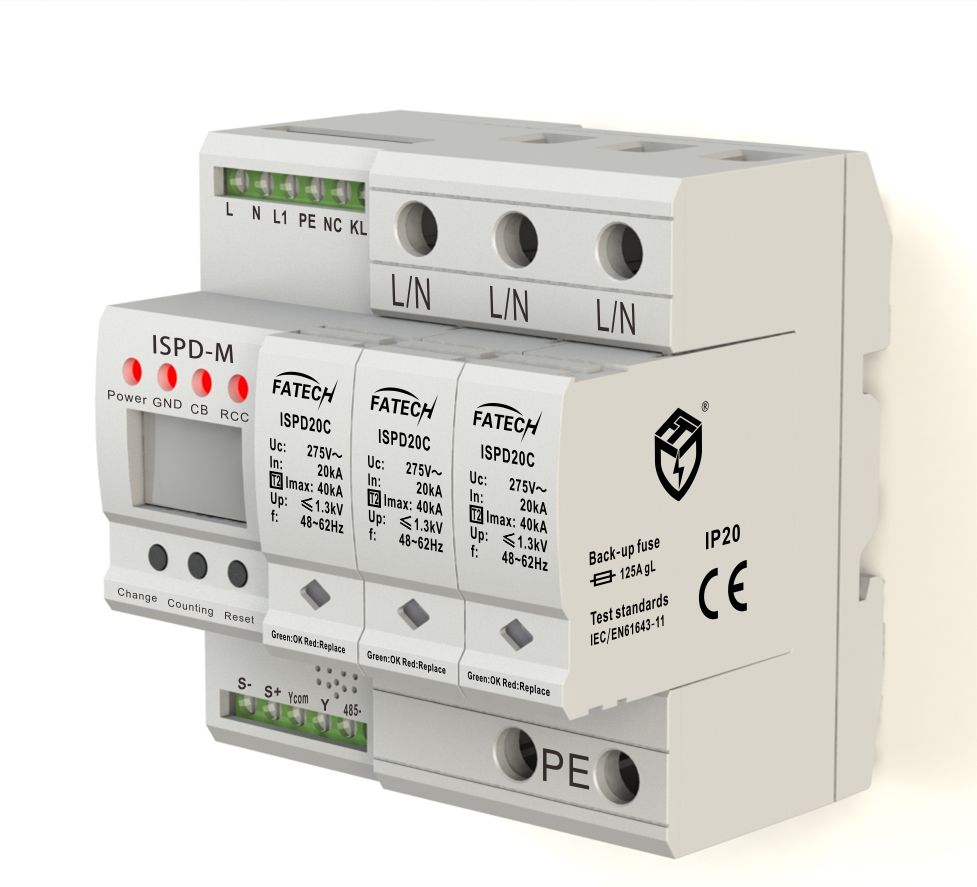

ISPD-M +ISPD20C Surge Protector SPD Monitor Module

iSPD series“neverbefore in the market”intelligent monitoring surge protective device, is consist of new designed surge protective device with temperature monitoring partinside-iSPD-20C,and intelligent monitoring module-iSPD-M,which are awarded national design patent and appearance patent. The surge protective device and monitoring module are installed into separate base. The monitoring module also could be used together with other different SPDs according to end-user’s different requirement.

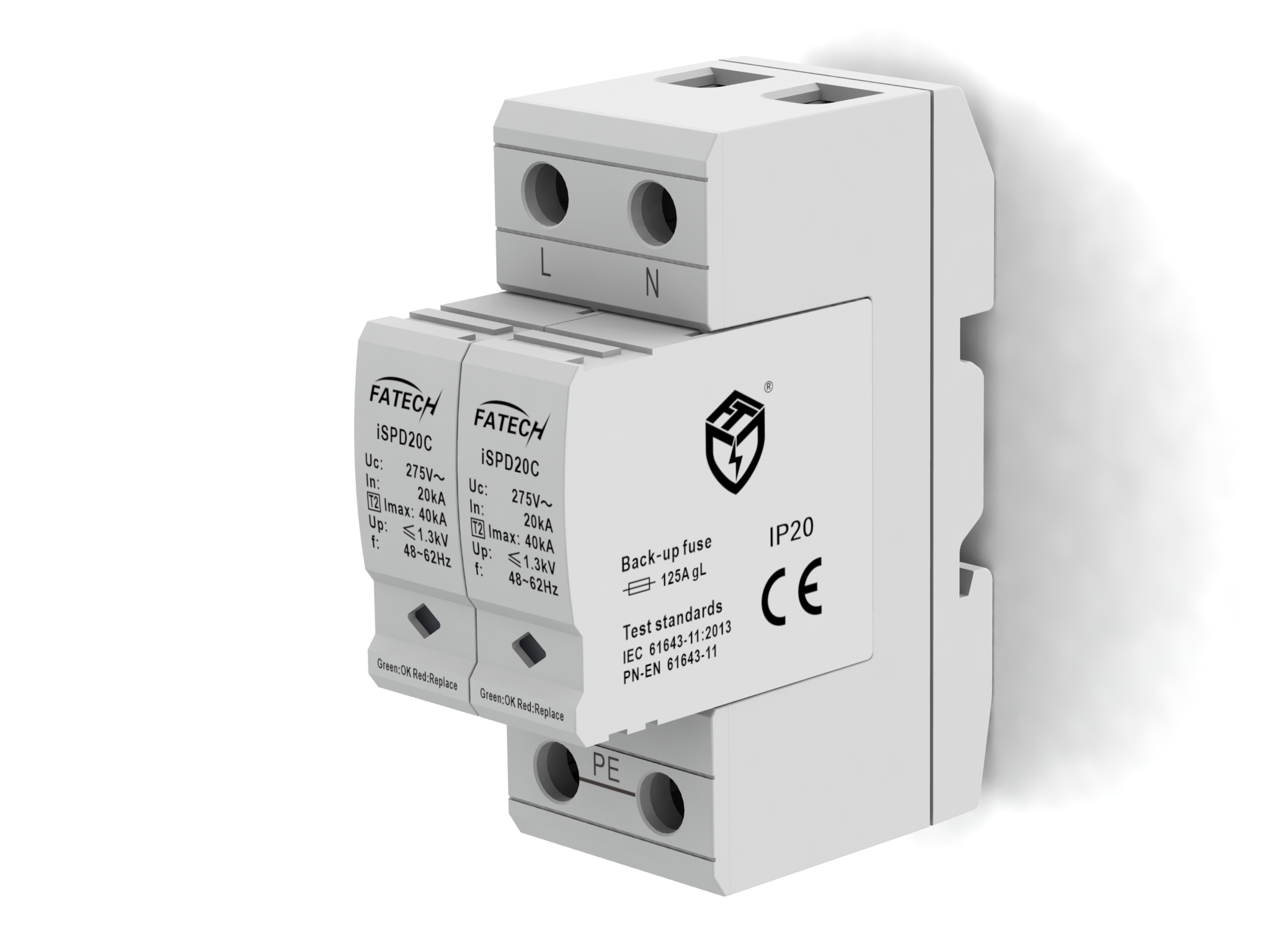

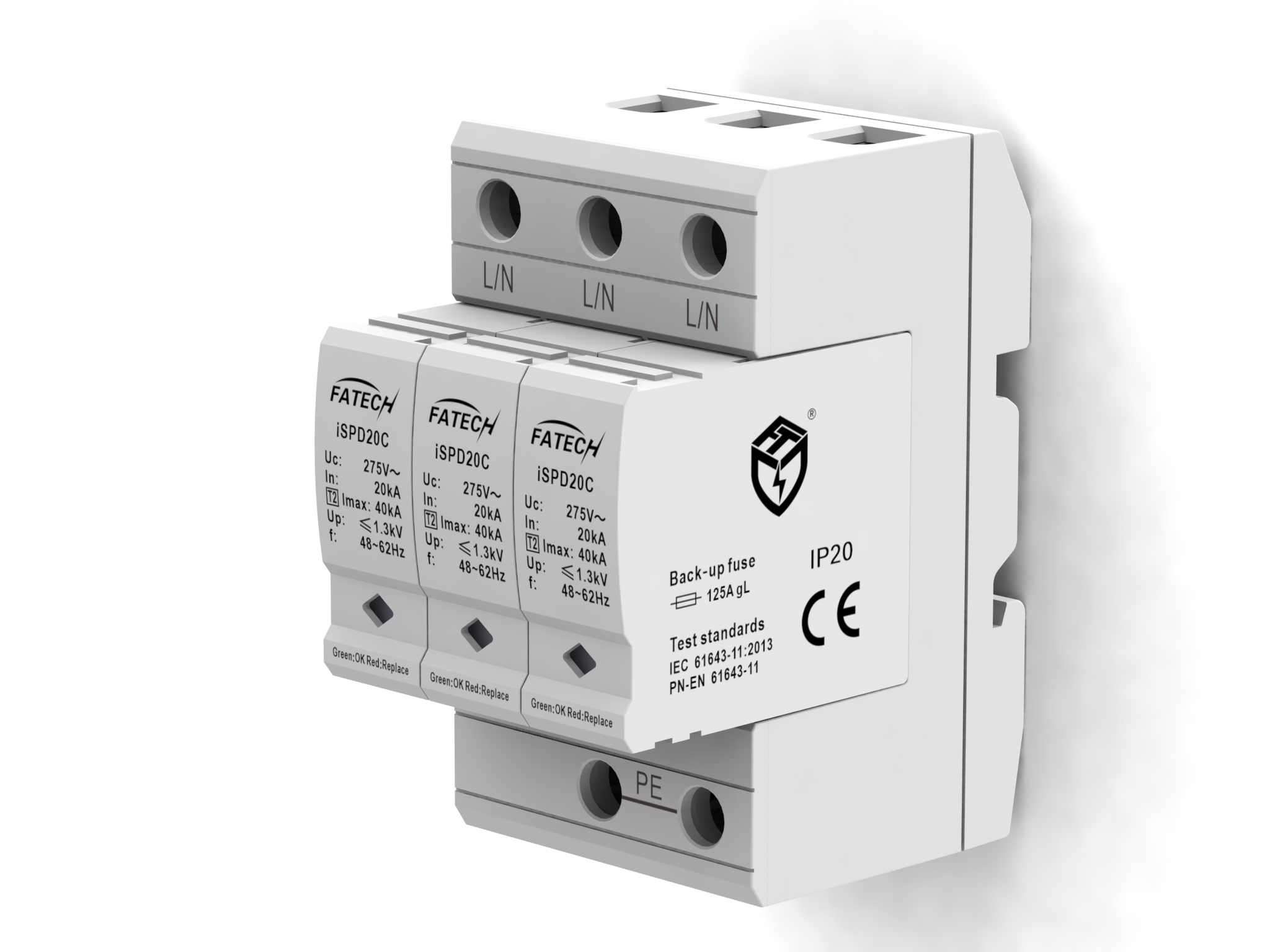

1.The surge protective device iSPD20C has inner temperature monitoring partinstalled inside every module,collection temperature is fast,the response to the temperature change of the surge suppression device is rapid, and the sensitivity is high.

2.There is pre-written temperature and status information data modelin the monitoring module,it can monitor the temperature of each pole of surge protective device in realtime.When the temperature is higher than the system set value,the monitoring module willperform an audible alarm.

3.Realized Online detection,real-time monitoring,automatic recording data, communication through RS485 wired communication.

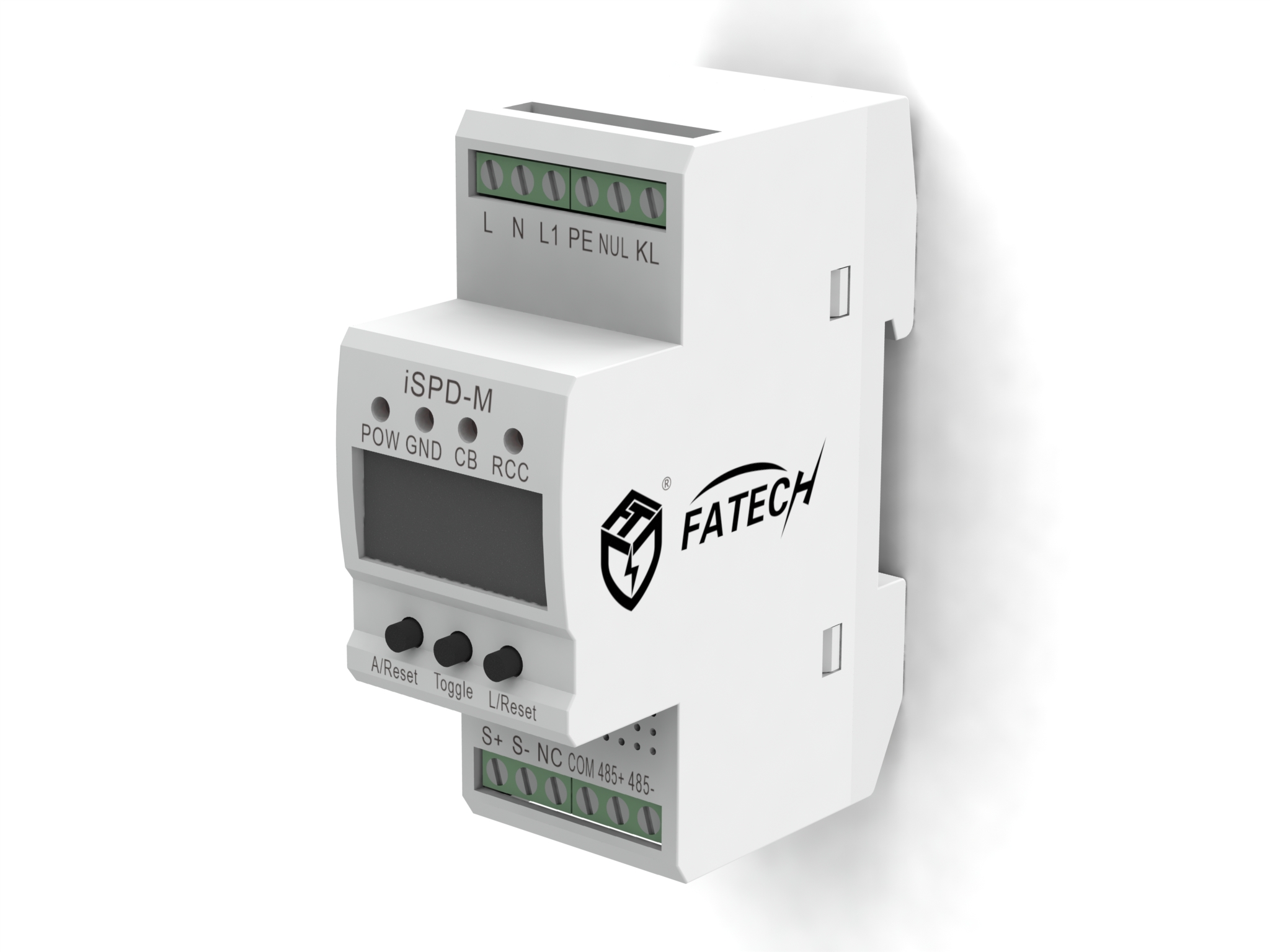

The monitoring module iSPD-M has the functions below,

1.The monitoring module can be connected to the back-end server.With the network,the computer can remotely monitor surge protective device.

2. Temperature alarm: When the temperature is in the range of certain degrees, the duration reaches certain time, the output signalis alarmed.

3.Lightning strike count: When the SPD is struck bylightning,monitoring module willcount up.(LCD display).With count clear and count recovery function. 5.Fault alarm:product failure alarm(ie tripping), product over-temperature alarm(leakage exceeded), product not grounded or grounded unproper alarm, front MCB disconnect alarm.
