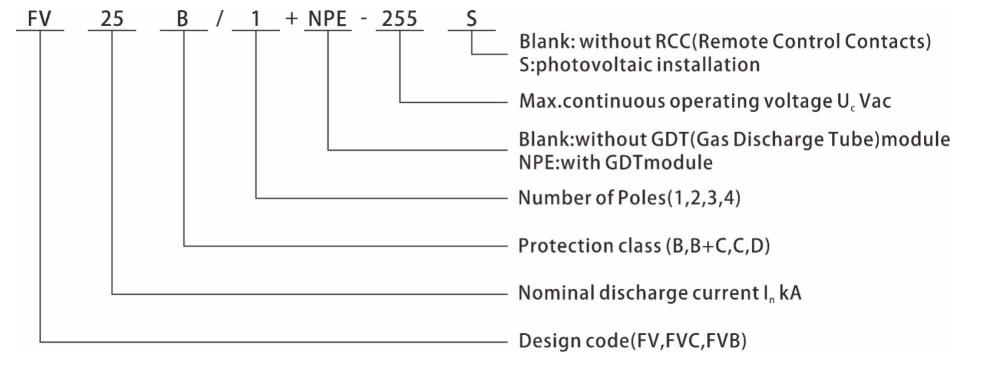

1.Coding
2. Circuit

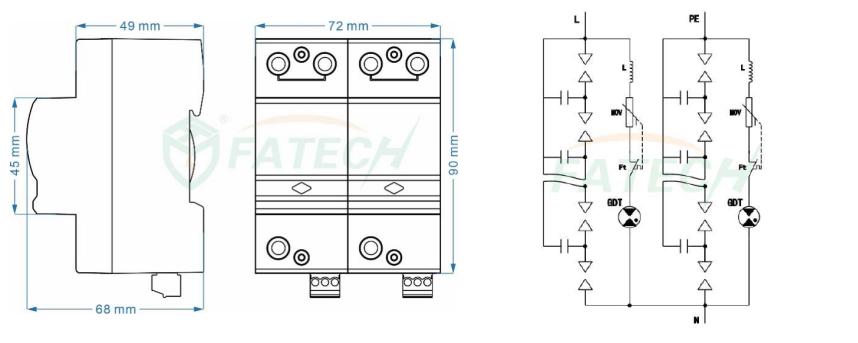

3. Dimension
4. Installation
IEC61643 Type 1+2 Iimp 25kA Single Phase AC Surge Protector
Model No.: FV12.5B+C/3-1000PVNS
The FIM-3000 flake ice machine is designed for continuous industrial ice production, delivering stable performance under demanding operating conditions. Featuring a vertical evaporator structure and optimized refrigeration system, it ensures uniform ice thickness, high operational reliability.

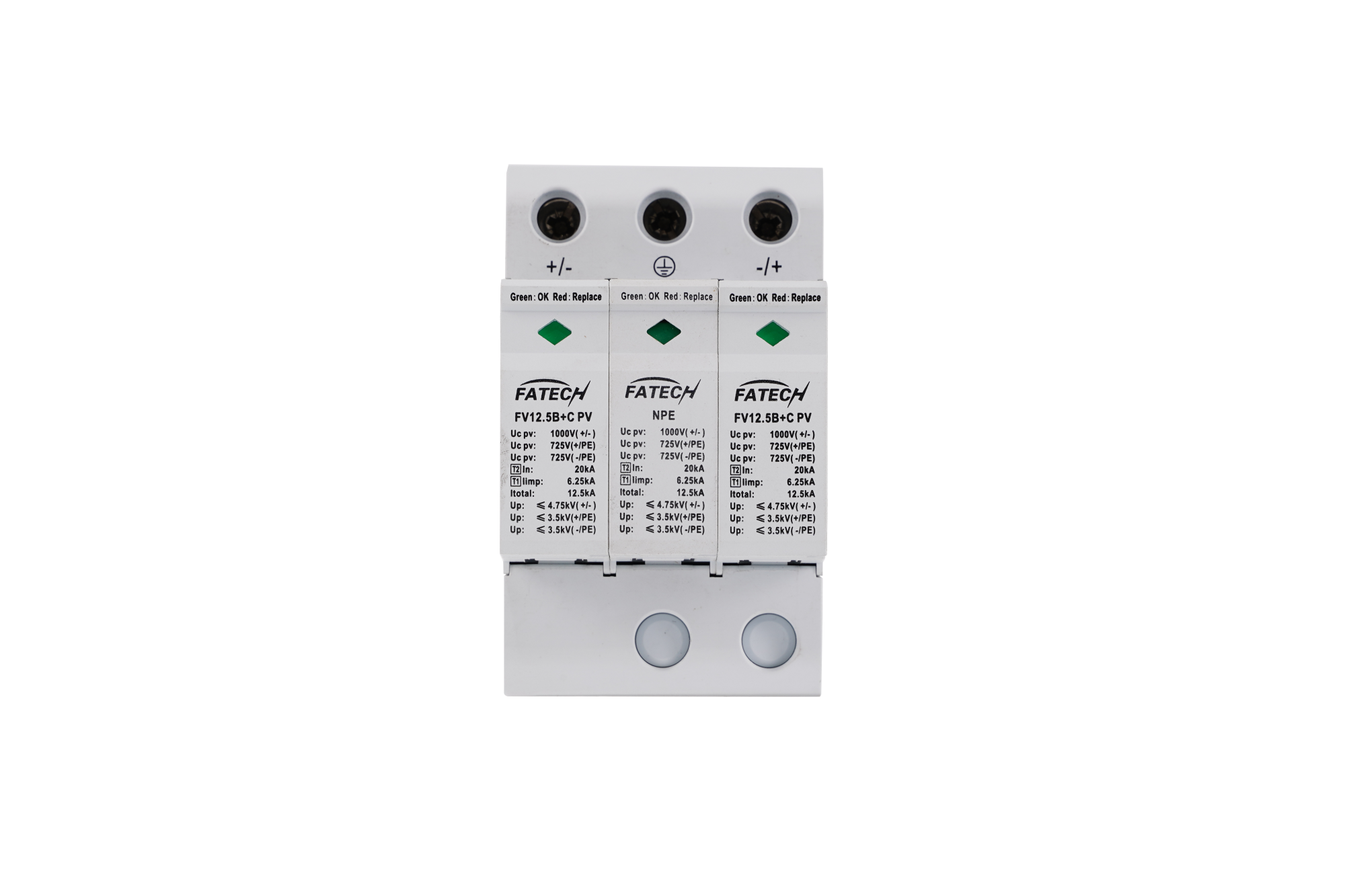

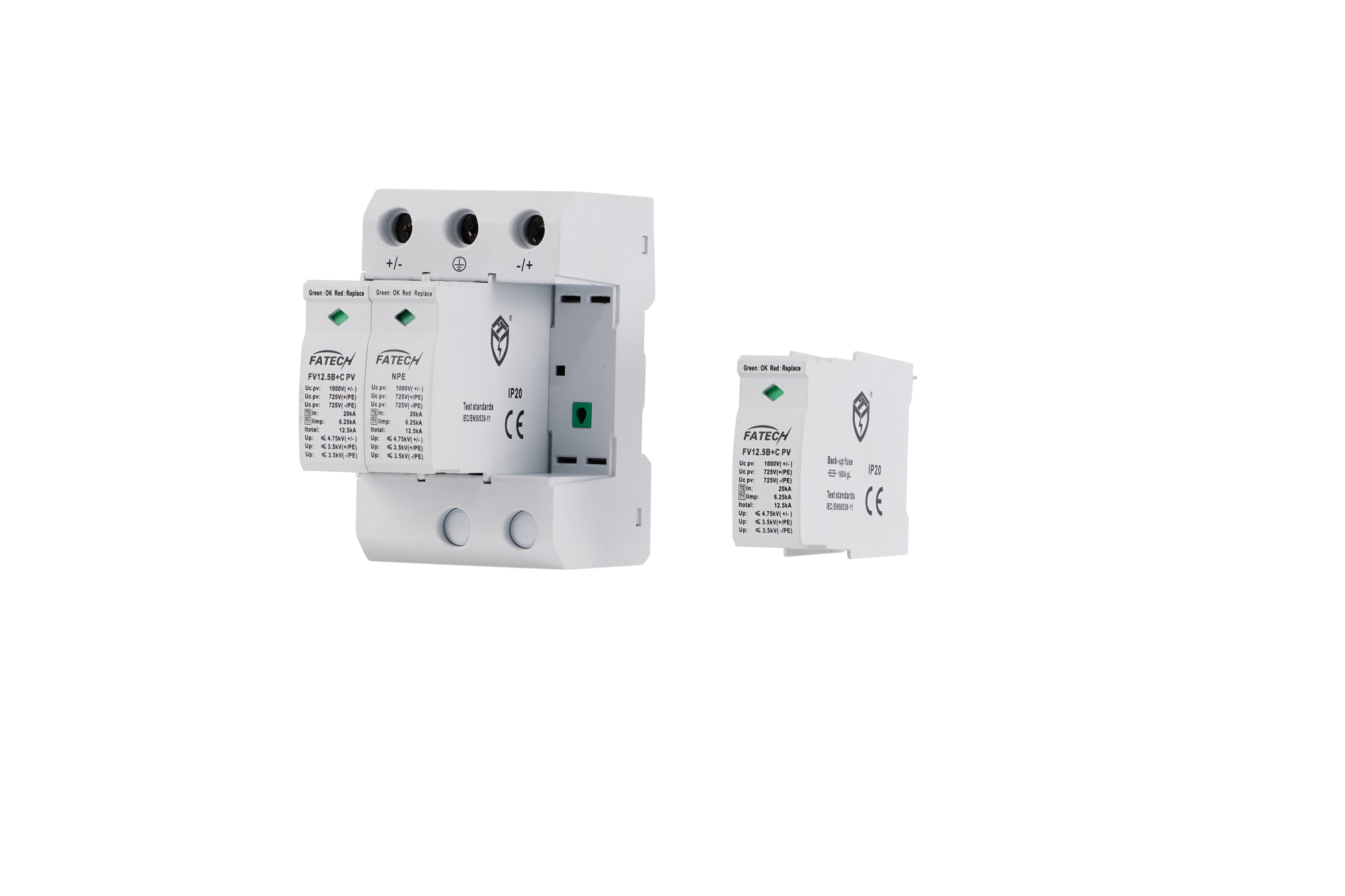

DC Surge protective device for PV system
Model No.: FV12.5B+C/3-1000PVNS
- DC surge Protective device specially used for photovoltaic system less than 1000Vdc.
- The core parts are metal oxide vristor components with high discharge capacity.
- With reliable control thanks to Thermo Dynamic Control disconnector.
- Without remote signaling contact for control device.
- Fault indication via red mark in the inspection window.
Advantage
Kyle Fiedler
If the copy becomes distracting in the design then you are doing something wrong or they are discussing copy changes.
Kyle Fiedler
If the copy becomes distracting in the design then you are doing something wrong or they are discussing copy changes.
Kyle Fiedler
If the copy becomes distracting in the design then you are doing something wrong or they are discussing copy changes.
Kyle Fiedler
If the copy becomes distracting in the design then you are doing something wrong or they are discussing copy changes.
Kyle Fiedler
If the copy becomes distracting in the design then you are doing something wrong or they are discussing copy changes.
Common Gallery, Video, or Industry
Learn More
Title
Title
Title
Title
Title
Electrical parameters
| Model. No. | FV12.5B+C/3-1000PVNS |
| SPD protection conforms to EN50539-11/IEC61643-31 | Type 1+2 |
| SPD installation type conforms to EN50539-11/IEC61643-31 | Class I+II |
| Protection level conforms to DIN VDE0675-6 | B+C |
| Type of Network | Photovoltaic systems DC side |
| Protection mode | (+/-)-PE , (-/+)-PE |
| Nominal Voltage Uocstc | 1000 Vdc |
| Maximum continuous operating voltage for PV application UCPV | 1000 Vdc |
| Continuous operating current ICPV | <20 uA |
| Residual current IPE | ≤20 uA DC ≤500 uA AC |
| Standby power consumption PC | ≤25 mVA |
| Nominal discharge current (8/20μs) In | 20 kA |
| Impuse discharge current (10/350μs) Iimp | 6.25 kA |
| Total Impuse discharge current (10/350μs) Itotal | 12.5 kA |
| Short-circuit current rating Iscpv | 1000A |
| Voltage protection level Up | ≤4.75 kV |
| Isolation resistance Risol | ＞1000 MΩ |
| Response time tA | ≤25 ns |
| Remote control contact | YES |
| Disconnection indicator | Mechanical indicator (Green: OK, Red: Replace) |
| Minimum area of connecting cable | 6 mm2 |
| Maximum area of connecting cable | 35 mm2 |
| Installation location | Inside |
| Mounting type | 35mm DIN rail acc. to EN 60715 |
| Color | Gray |
| Degree of protection | IP20 |
| Housing material | UL94V-0 |
| Ambient temperature | -40°C ~+80°C |
| Altitude | ≤2000 m (amsl) |
| Permissible humidity | 30%~90% |
