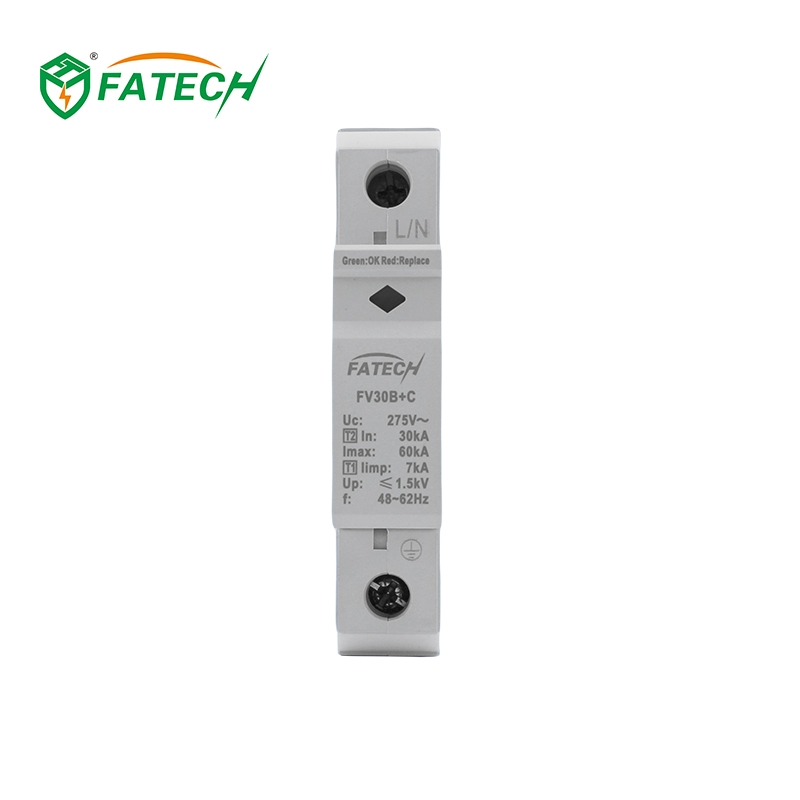

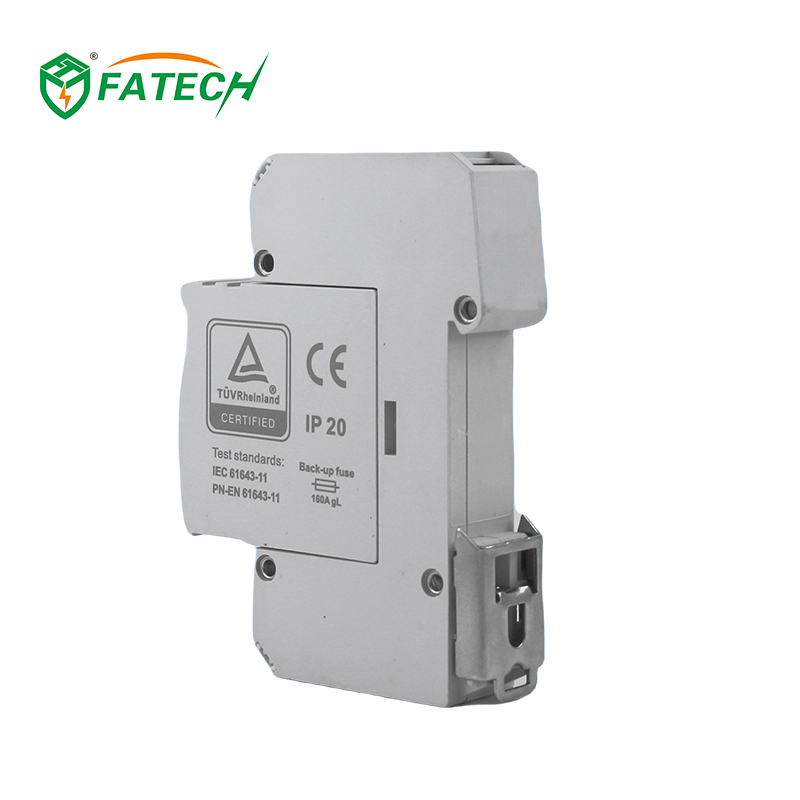

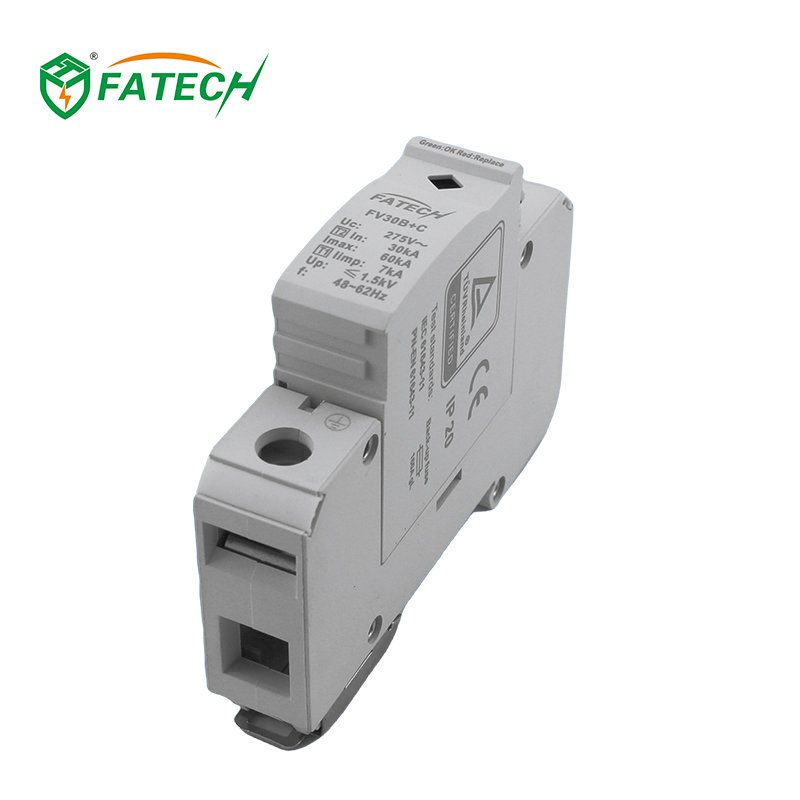

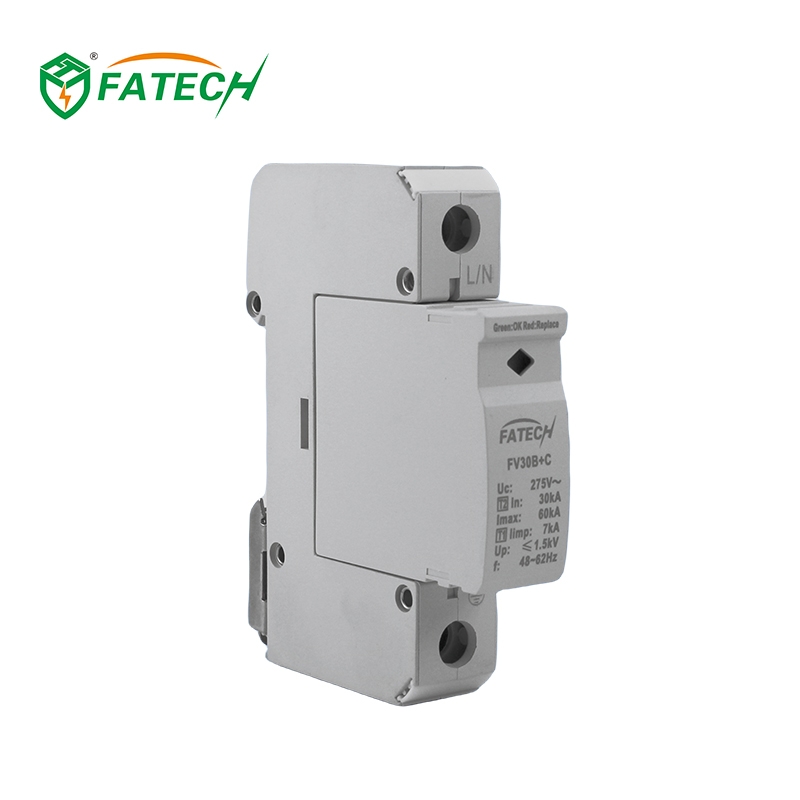

FV30B+C/1-XXX 1pole lightning surge suppressor

FV30B+C/1-XXX
FATECH FV30B+C/1-XXX series are Class I+II (Type 1+2) single‑pole AC surge protective devices suitable for TT, TN and IT power systems. With Iimp 7kA, Imax 60kA, In 30kA and ultra‑fast response ≤25ns, they provide efficient combined lightning and surge protection for L/N‑PE circuits. Featuring mechanical status indication, DIN‑rail mounting and optional remote contact, they ensure stable and reliable surge protection for various low‑voltage power applications.

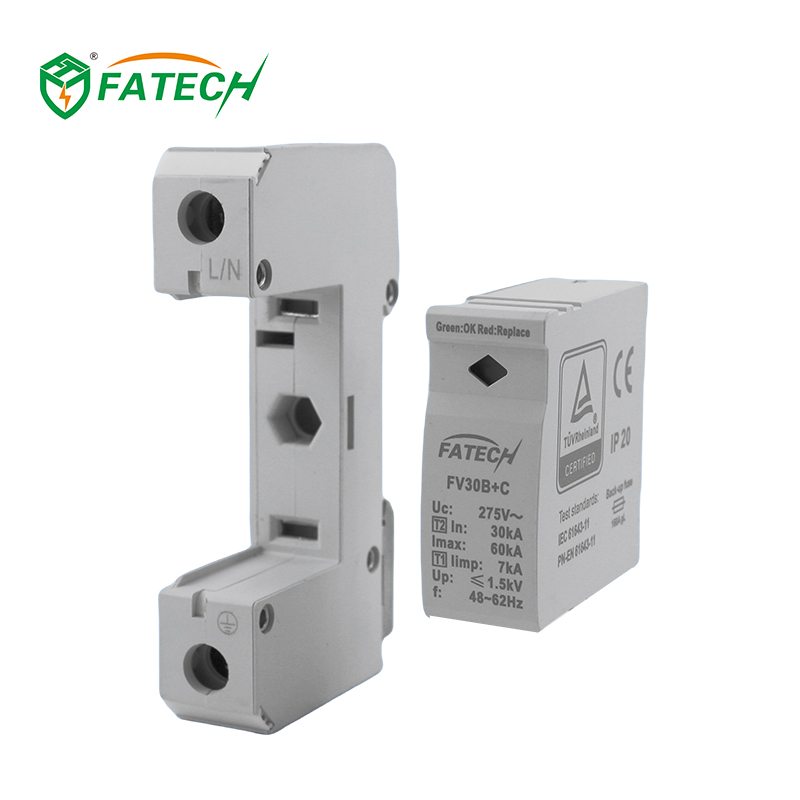

-Consisting of a base part and MOV pluggable protection modules.

-For using in the lightning protection zones concept at boundary 1-2.

-The core parts are metaloxidevristor components with high discharge capacity.

-Low residual voltage and quick response.

-Reliable control thanks to Thermo Dynamic Control disconnector.

-With remote signaling contact for control device.

-Fault indication via red mark in the inspection window.

-Protection mode: L/N-PE.

Get a Quote
Get a Quote
Product Brochure
Click to enlarge

Advantage

Stable & Reliable Surge Protection

Stable & Reliable Surge Protection

Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.
Wide Application Compatibility

Wide Application Compatibility

Covers AC, DC, photovoltaic, PoE network, and signal surge protection solutions, widely used in solar systems, LED lighting, industrial control, security monitoring, buildings and infrastructure.
Durable Structure & Easy Installation

Durable Structure & Easy Installation

Features rugged housing (including aluminum enclosure for outdoor models), DIN‑rail mounting, pluggable design and compact size for easy installation, wiring and maintenance in various working environments.
Certified Quality & Cost-Effective

Certified Quality & Cost-Effective

Most core products have passed TUV, CE and international safety certifications, with strict quality control. Stable performance and reasonable pricing bring high cost-performance for global projects.

FV30B+C/1-150

UN : 110V

Uc : 150V

In : 30kA

Imax : 60kA

Iimp : 7kA

Up ≤ 0.9kV

FV30B+C/1-275

UN : 220V

Uc : 275V

In : 30kA

Imax : 60kA

Iimp : 7kA

Up ≤ 1.5kV

FV30B+C/1-320

UN : 220V

Uc : 320V

In : 30kA

Imax : 60kA

Iimp : 7kA

Up ≤ 1.8kV

FV30B+C/1-385

UN : 220V

Uc : 385V

In : 30kA

Imax : 60kA

Iimp : 7kA

Up ≤ 2.0kV

FV30B+C/1-440

UN : 220V

Uc : 440V

In : 30kA

Imax : 60kA

Iimp : 7kA

Up ≤ 2.2kV

Coding system of surge suppressor FV30B+C/1-XXX

Dimension and circuit drawing of surge suppressor FV30B+C/1-XXX

Installation of surge suppressor FV30B+C/1-XXX

Electrical parameters

Model. No. FV30B+C/1-150(S) FV30B+C/1-275(S) FV30B+C/1-320(S) FV30B+C/1-385(S) FV30B+C/1-440(S)
Test class IEC/EN/VDE Class I+II/B+C/Type1+2
Type of Network TT,TN,IT
Protection mode L/N-PE
Nominal Voltage 50(60)Hz UN 110V 220V 220V 220V 220V
Rated Voltafe (Max. Cont.Operating voltage) UC 150V 275V 320V 385V 440V
Impuse current (10/350μs) Iimp 7kA
Max. discharge current (8/20μs) Imax 60kA
Nominal discharge current (8/20μs) In 30kA
Voltage protection level Up ≤0.9kV ≤1.5kV ≤1.8kV ≤2.0kV ≤2.2kV
Response time tA ≤25ns
Recommended back-up fuse 160A
Isolation resistance ＞100 MΩ
I/O Connections Multi core wire:4mm2-25mm2
Mounting 35mm Symmetrical rail (EN50022/DIN46277-3)
Operation temperature range/humidity/altitude -40°C ~+80°C/30%-90%/3000m
Degree of protection IP20
Housing material UL94V-0
Disconnection indicator Mechanical indicator
(Green: OK, Red: Replace)
Remote control contact Optional
