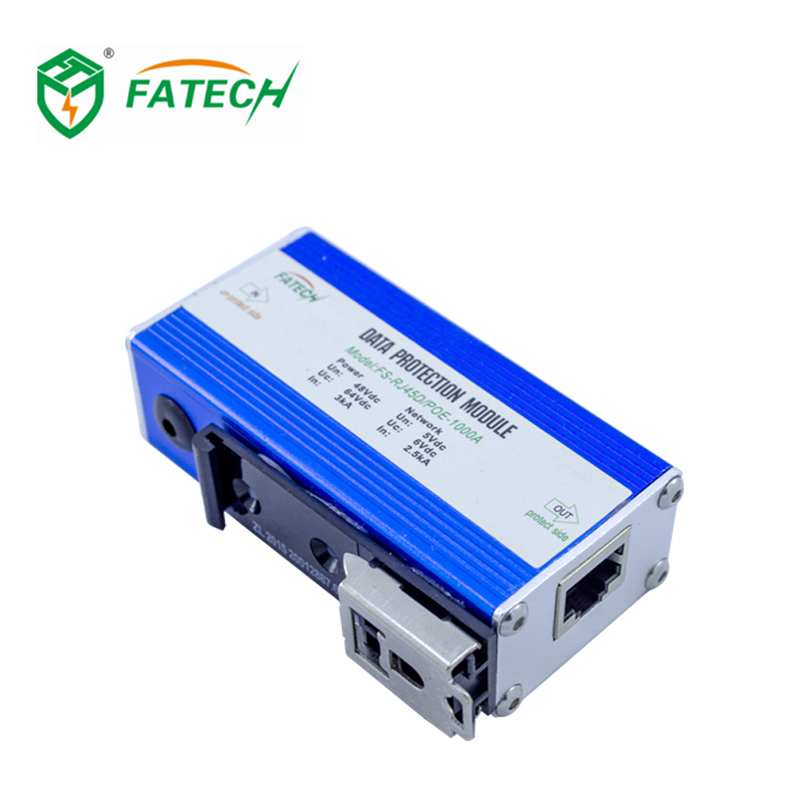

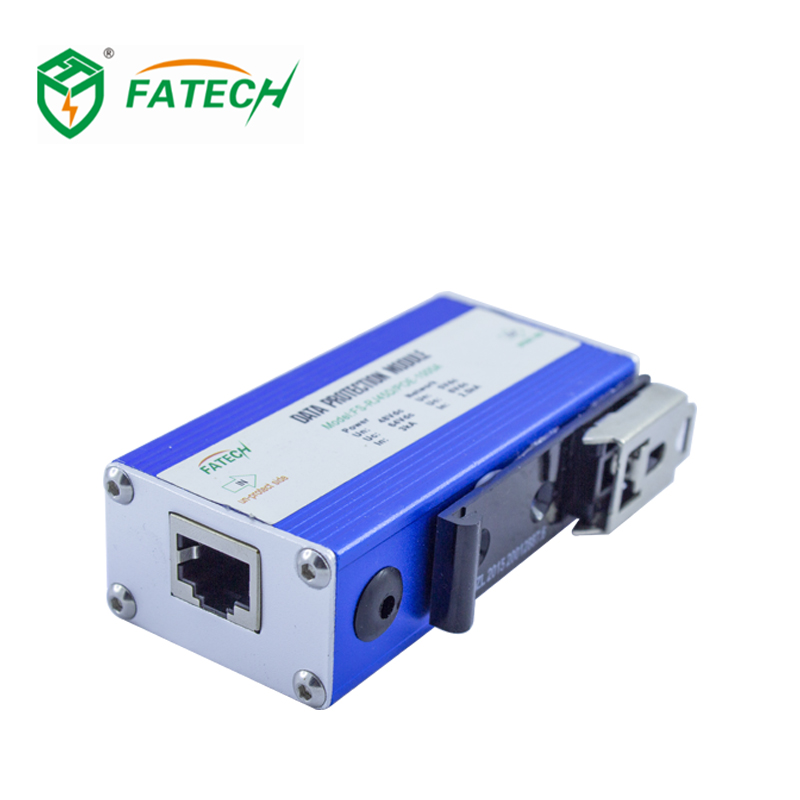

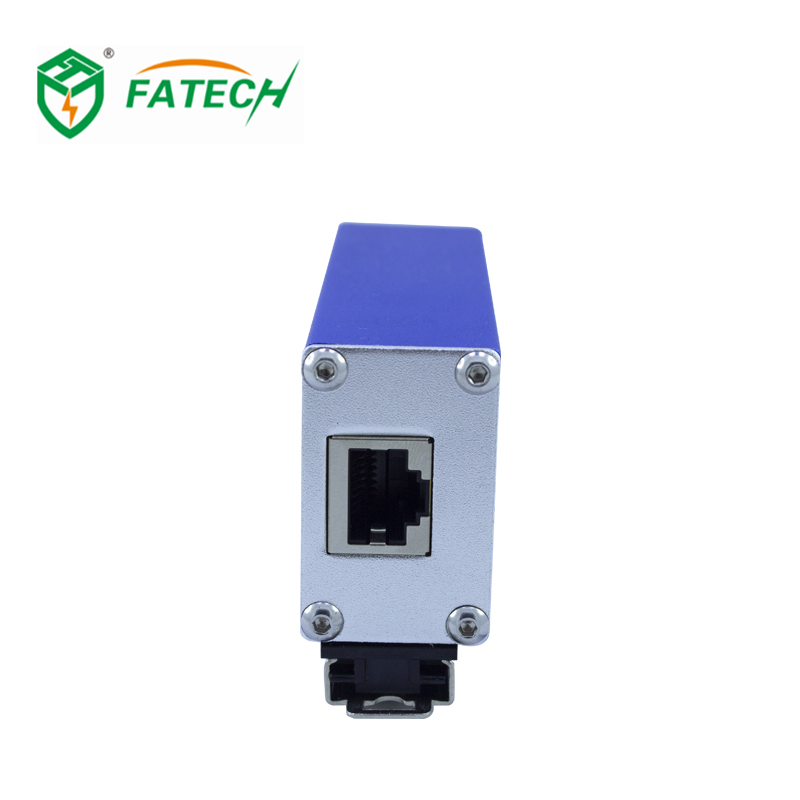

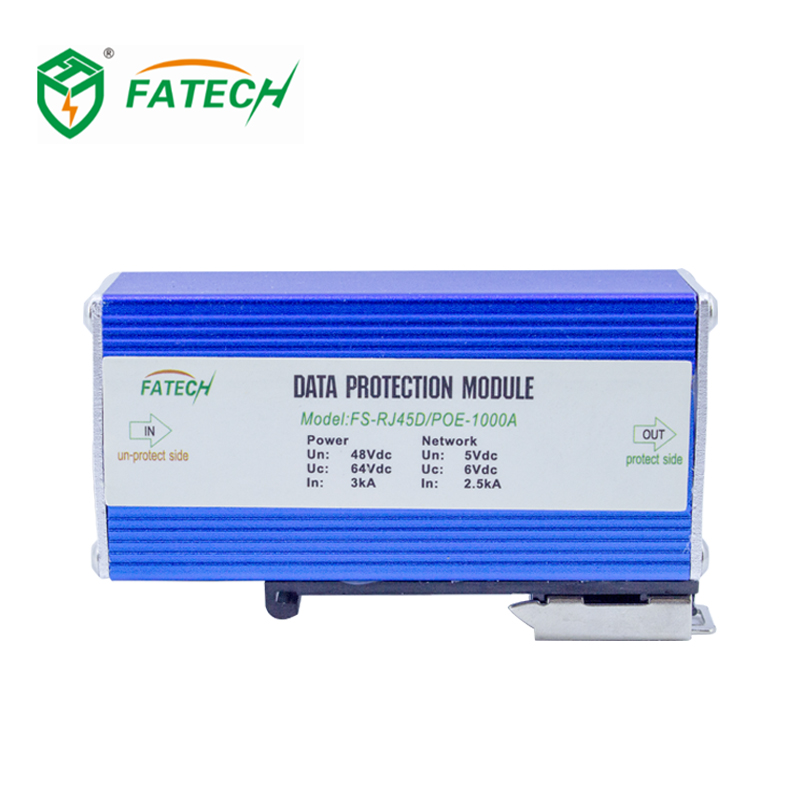

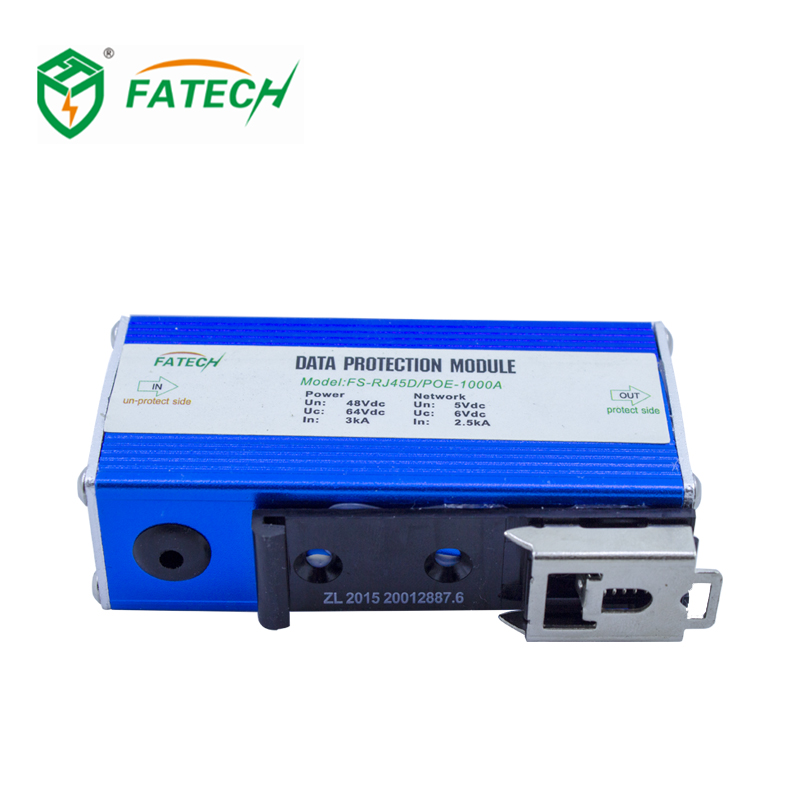

FS-RJ45D/POE-1000A Alluminum Shell POE signal surge arrester

FS-RJ45D/POE-1000A

FATECH FS-RJ45D/POE-1000A is a gigabit PoE surge protector with aluminum housing, designed for RJ45 network and PoE devices. It provides effective lightning and surge protection for IP cameras, wireless APs and network equipment with stable transmission.

-Din rail RJ45 surge arrester, POE signal surge protector,suitable for application of POE cable-powered server,wireless AP, network cameras, network switches and other communications equipment supply, network signal line surge protection, integrated design, easy installation.

-Adopt power supply + signal surge protection intergrateddesign.

-Use high quality main component with excellentperformance.

-Small insertion loss, good trnasmission rate.

-Low residual voltage, efficient surge protection effect.

-Fast response, stable performance, reliable working.

-Small size, DIN Rail installation, convenient application,maintenance free.

Click to enlarge

Advantage

Stable & Reliable Surge Protection

Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.

Wide Application Compatibility

Covers AC, DC, photovoltaic, PoE network, and signal surge protection solutions, widely used in solar systems, LED lighting, industrial control, security monitoring, buildings and infrastructure.

Durable Structure & Easy Installation

Features rugged housing (including aluminum enclosure for outdoor models), DIN‑rail mounting, pluggable design and compact size for easy installation, wiring and maintenance in various working environments.

Certified Quality & Cost-Effective

Most core products have passed TUV, CE and international safety certifications, with strict quality control. Stable performance and reasonable pricing bring high cost-performance for global projects.

FS-RJ45D/POE-1000A

Signal Line Power Supply Line

UN :5 V dc 48v

Uc : 6 V dc 64v

In : 2.5kA 3.0kA

Imax : 6.0kA 3.0kA

Dimension and circuit drawing of signal surge arrester FS-RJ45D/POE-1000A

Electrical parameters

Model. No.		FS-RJ45D/POE-1000A
Type of Network		Network signal transmission system
Line		Power Supply Line	Signal Line
Nominal voltage 50(60)Hz UN		48V	5V
Rated Voltage (Max. Cont. Operating Voltage) Uc		60V	6V
Max. discharge current (8/20us)Imax		10kA	10kA
Nominal discharge current (8/20us) IN		3.0kA	2.5kA
Voltage protective level Up	L-L	≤150V	30V
	L-PE	≤1600V	300V
Adapt transmission rate		——	100Mbit/s
Insertion loss		——	≤0.5Mbit/s
Interface	IN	RJ45
	OUT	RJ45
Mounting		Symmetrical rail(EN50022-DIN46277-3)
Response time tA		≤10ns
Operation temperature range/humidity /altitude		-40°C~+80°C / 30%~90% / 3000m
Housing material		UL94 V-0
Degree of protection		IP20
