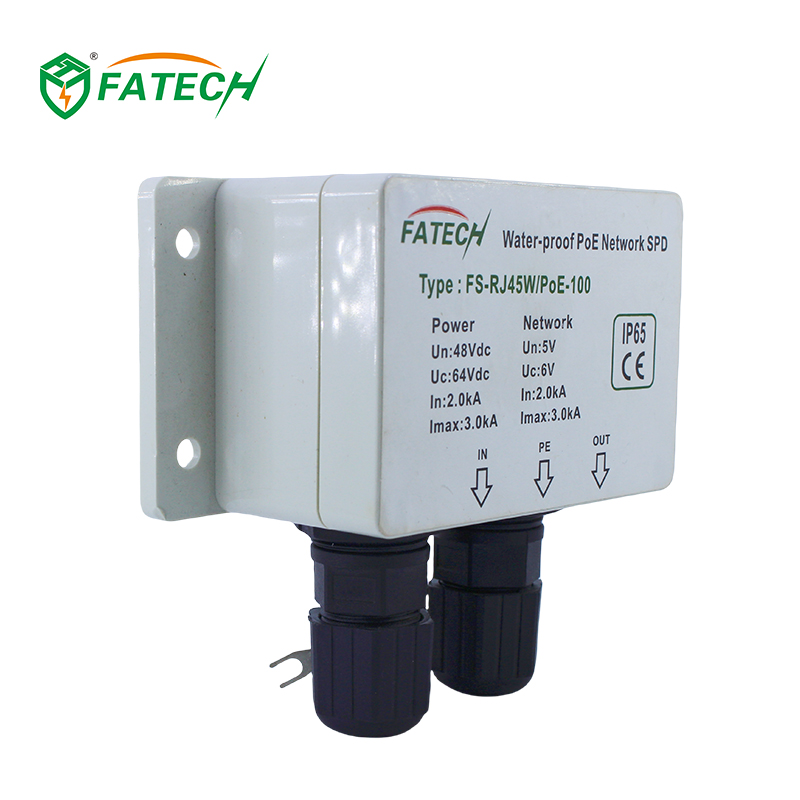

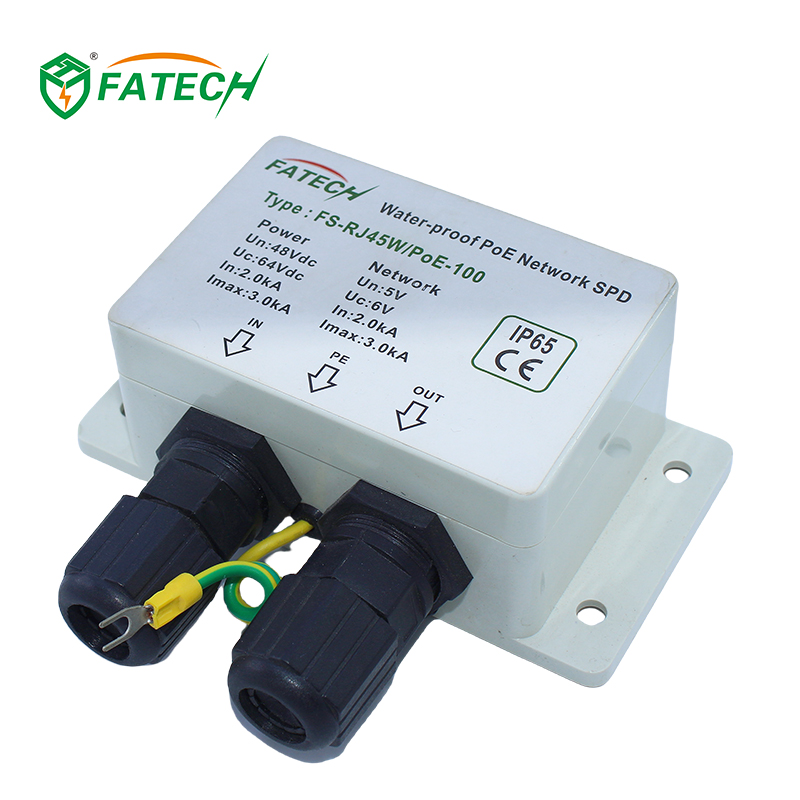

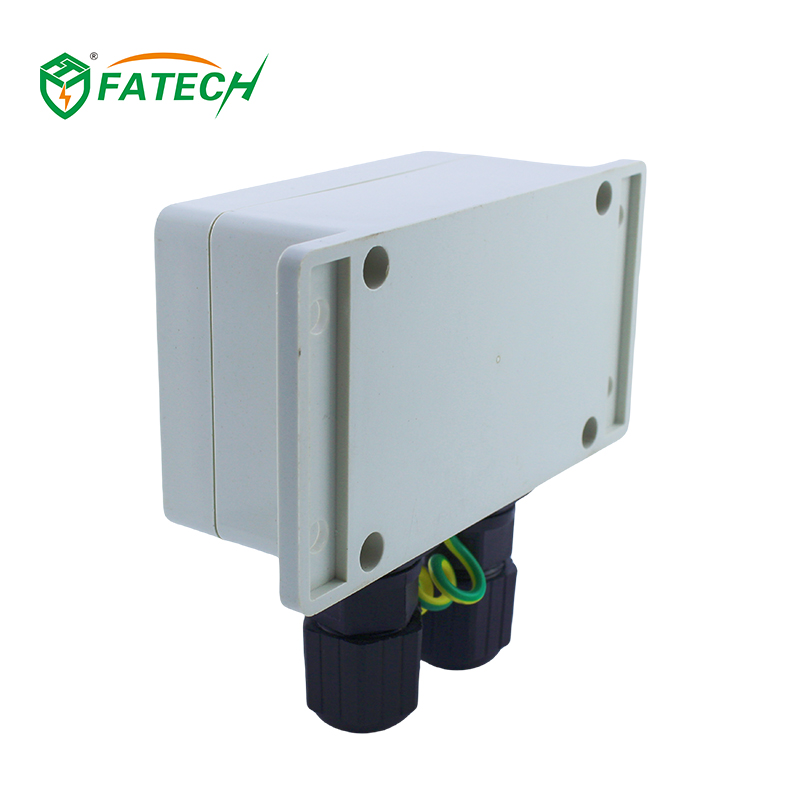

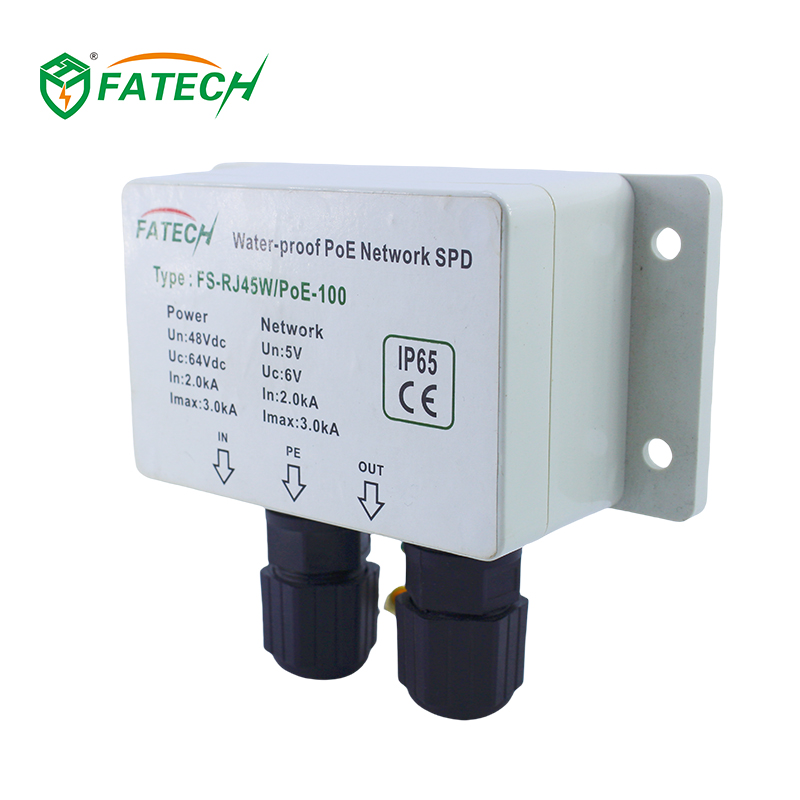

FS-RJ45W/POE-1000 water-proof 1000M PoE surge protector

FS-RJ45D/POE-1000

FATECH FS-RJ45W/POE-1000 is a waterproof gigabit PoE surge protector specially designed for outdoor RJ45 and PoE equipment. It provides efficient lightning and surge protection for outdoor IP cameras, wireless APs and network devices, with stable 1000Mbps transmission and reliable weatherproof performance.

-Water -proof RJ45 PoE surge protective device

-Adopt power supply + signal surge protection integrated design.

-Transmission rate:1000M

-Rated voltage 5Vdc,12Vdc,24Vdc,48Vdc avaiable.

-Screw tie up installation,used outdoor.

-Degree of protection:IP65

Click to enlarge

Advantage

Stable & Reliable Surge Protection

Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.

Wide Application Compatibility

Covers AC, DC, photovoltaic, PoE network, and signal surge protection solutions, widely used in solar systems, LED lighting, industrial control, security monitoring, buildings and infrastructure.

Durable Structure & Easy Installation

Features rugged housing (including aluminum enclosure for outdoor models), DIN‑rail mounting, pluggable design and compact size for easy installation, wiring and maintenance in various working environments.

Certified Quality & Cost-Effective

Most core products have passed TUV, CE and international safety certifications, with strict quality control. Stable performance and reasonable pricing bring high cost-performance for global projects.

FS-RJ45W/POE-1000

Signal Line Power Supply Line

UN :5 V dc 48v

Uc : 6 V dc 64v

In : 2.0kA 2.0kA

Imax : 3.0kA 3.0kA

Dimension and circuit drawing of signal surge protection device FS-RJ45W/POE-1000

Electrical parameters

Model. No.		FS-RJ45W/POE-1000
Line		Power Supply Line	Signal Line
Nominal voltage 50(60)Hz UN		48V	5V
Rated Voltage (Max. Cont. Operating Voltage) Uc		64V	6V
Max. discharge current (8/20us)Imax		3.0kA	3.0kA
Nominal discharge current (8/20us) IN		2.0kA	2.0kA
Protection level((8/20us))Up		≤350V	≤350V
Adapt transmission rate		——	1000Mbit/s
Insertion loss		——	≤0.5 dB
Interface Port Type		(1,2);(3,6);(4,5);(7,8)
Interface	IN	RJ45
	OUT	RJ45
Shell		Plastic（ABS）
Dimension		See the drawing
Installation		Screw tie up
Cable		CAT6,8 core 4 twisted-pair
Environment		Temperature：-40-+85℃，Relative Humidity 30%-90%
Shell protection level		IP65
