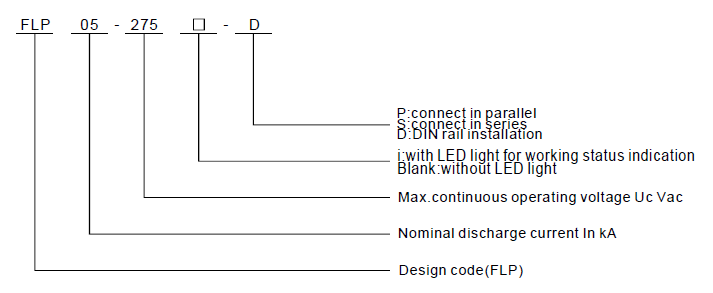

1.Coding

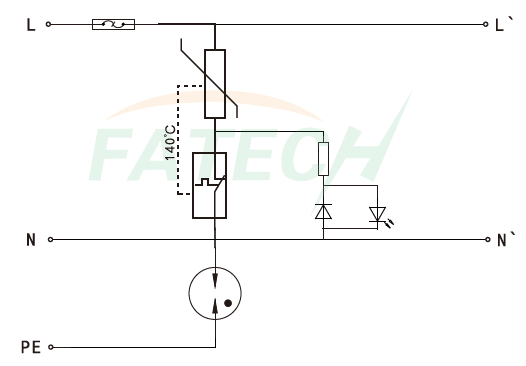

2. Circuit

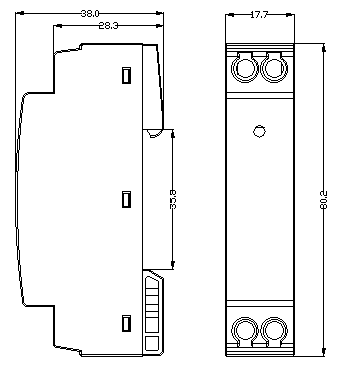

3. Dimension

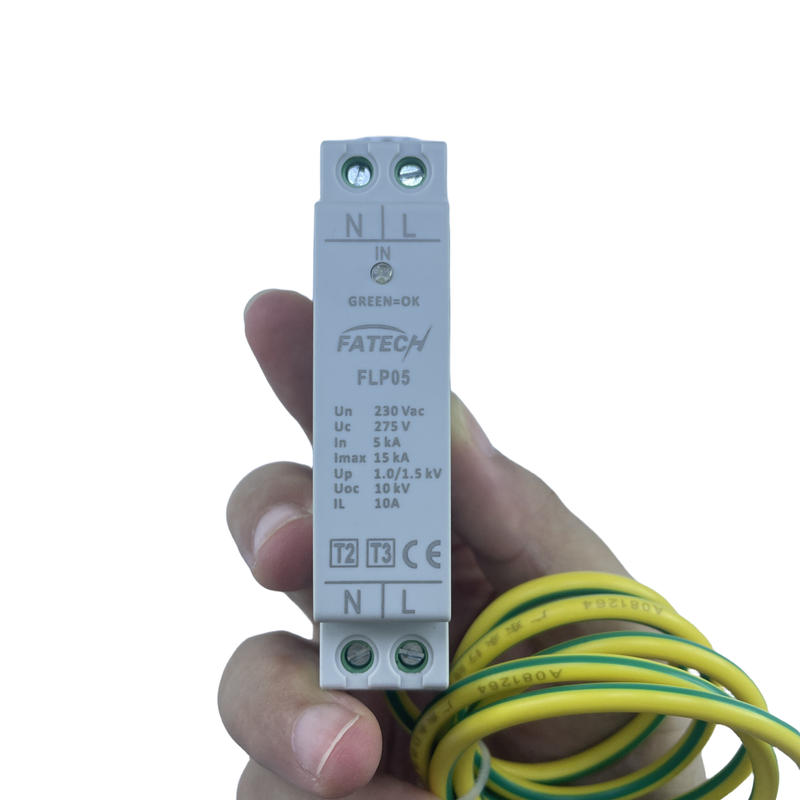

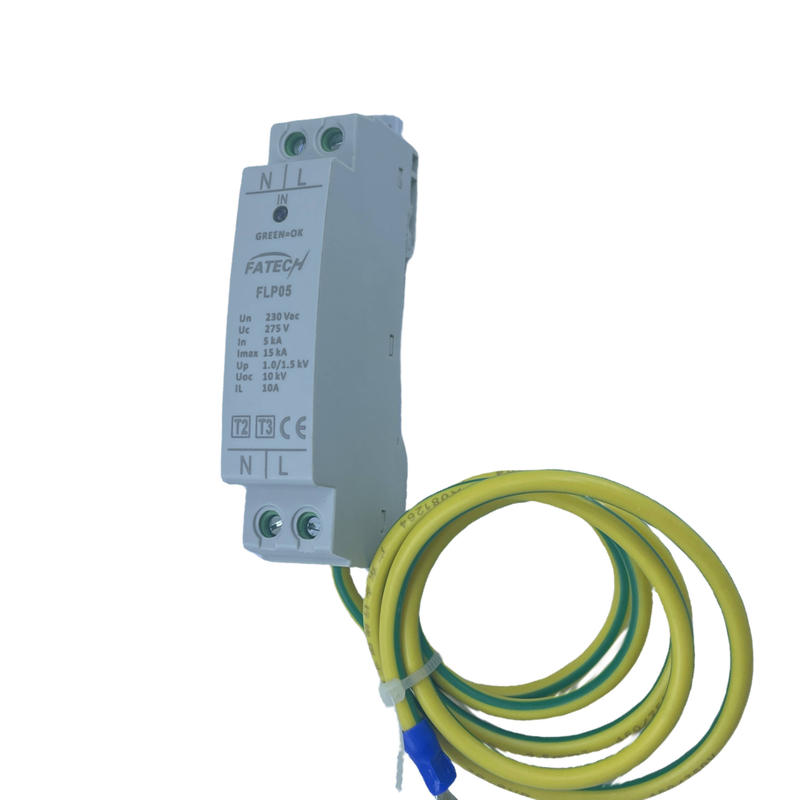

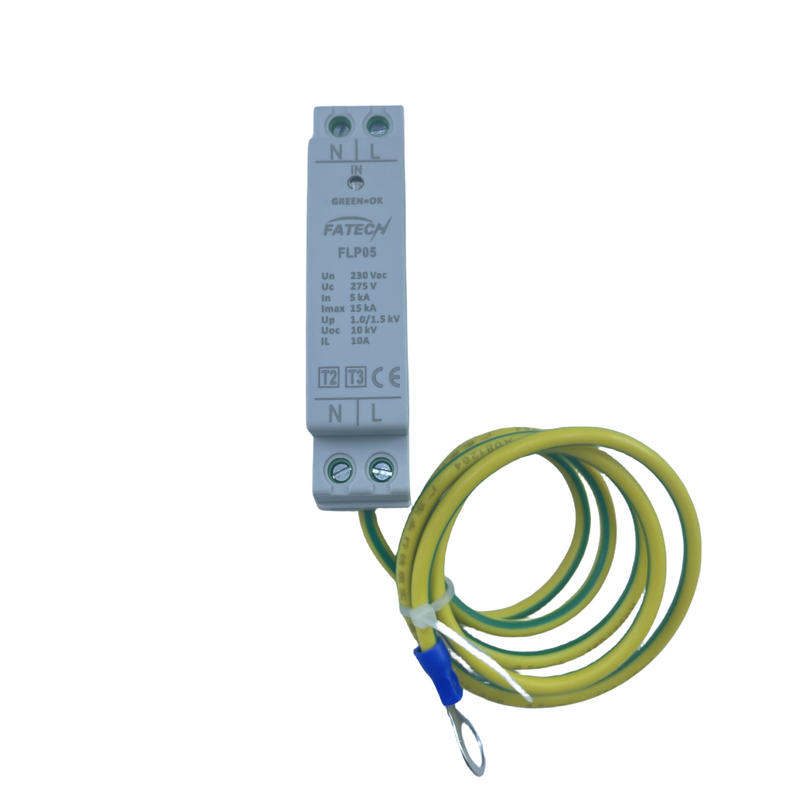

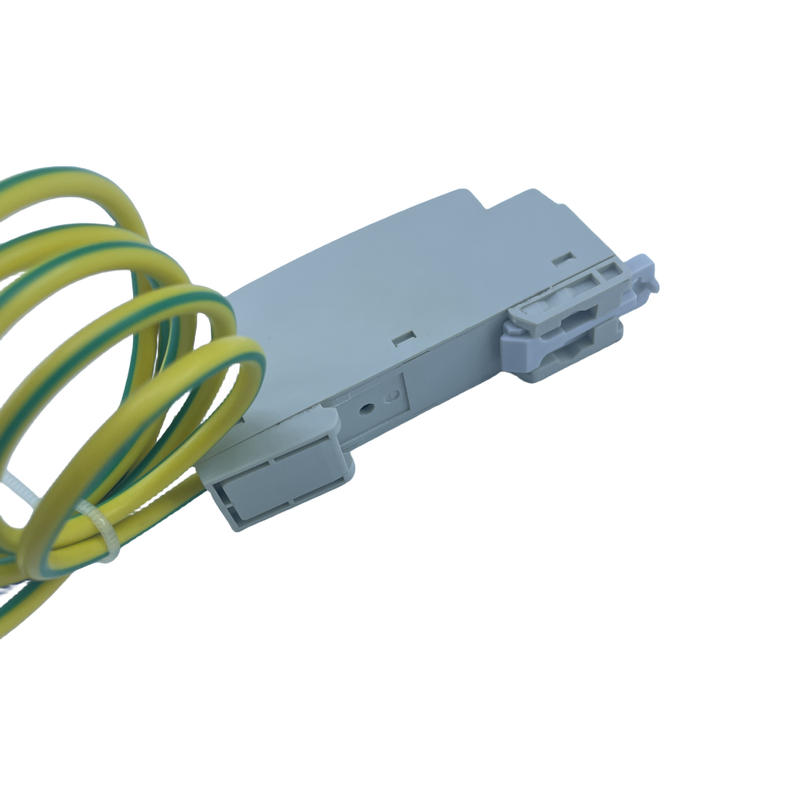

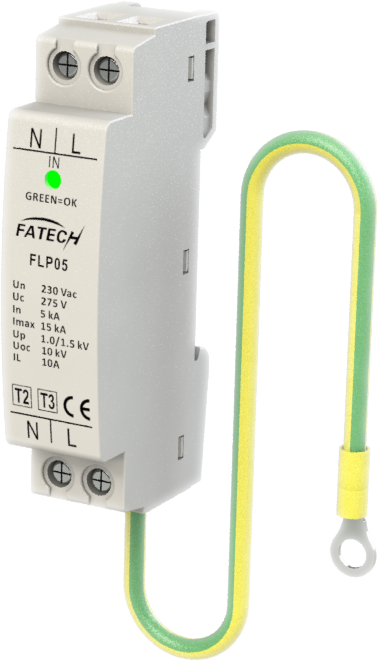

DIN Rail Type 2 LED Surge Protection SPD
Model No.: FLP05-275i-D
The FIM-3000 flake ice machine is designed for continuous industrial ice production, delivering stable performance under demanding operating conditions. Featuring a vertical evaporator structure and optimized refrigeration system, it ensures uniform ice thickness, high operational reliability.
DIN Rail Type 2 LED Surge Protection SPD
Model No.: FLP05-275i-D
-
- 1. New LED street light surge protection device. ,Type 2 (or 3) LED surge protector.Compact design
- 2. Specifically for outdoor and commercial LED lighting applications, LED signage and traffic light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traffic lighting, flood lighting, digital signage, street lightning, and tunneal lighting.
- 3.Imax 15kA lightning surge protection.
- 4. Varistor with built-in temperature tripping protection
- 5. Equipped with overload protection.Power supply disconnected when failure occurs
- 6.State indication
- 7. DIN rail installation
Advantage
Kyle Fiedler
If the copy becomes distracting in the design then you are doing something wrong or they are discussing copy changes.
Kyle Fiedler
If the copy becomes distracting in the design then you are doing something wrong or they are discussing copy changes.
Kyle Fiedler
If the copy becomes distracting in the design then you are doing something wrong or they are discussing copy changes.
Kyle Fiedler
If the copy becomes distracting in the design then you are doing something wrong or they are discussing copy changes.
Kyle Fiedler
If the copy becomes distracting in the design then you are doing something wrong or they are discussing copy changes.
Common Gallery, Video, or Industry
Learn More
Title
Title
Title
Title
Title
Electrical parameters
| Model. No. | FLP05-275i-D | |
| SPD protection conforms to EN 61643-11 | Type 2+3 | |
| SPD installation type conforms to EN 61643-1 | Class II+III | |
| Protection level conforms to DIN VED 0675-6 | C+D | |
| Type of Network | LED light | |
| Protection mode | L-N , N-PE , L-PE | |
| Nominal Voltage 50(60)Hz UN | 230 V~ | |
| Maximum continuous operating voltage UC | 275 V~ | |
| Maximum discharge current (8/20μs) Imax | 15 kA | |
| Nominal discharge current (8/20μs) In | 5 kA | |
| Voltage protective level Up | L-N | ≤1.3 kV |
| N-PE | ≤0.5 kV | |
| L-PE | ≤1.5 kV | |
| Open circuit voltage Uoc | 10 kV | |
| Response time tA | L-N | ≤25 ns |
| N-PE | ≤100 ns | |
| Recommended back-up fuse | 20 AgL/gG | |
| Thermal Cut-off Member | Internal | |
| Disconnection indicator | LED indicator | |
| Degree of protection | IP20 | |
| Mounting type | 35mm DIN rail acc. to EN 60715 | |
| Housing material | UL94V-0 | |
| Ambient temperature | -40°C ~+80°C | |
| Altitude | ≤2000m (amsl) | |
| Permissible humidity | 30%~90% | |
