FV10D/2-275S In10kA 2pole Class III ac surge protection device

FV10D/2-275S
FATECH FV10D/2-275S is a 2-pole AC surge protective device designed for low-voltage single-phase power distribution systems. It effectively suppresses lightning surges, transient overvoltages and switching surges to protect household appliances, office equipment, small electrical loads and distribution boxes from damage.
This SPD features compact structure, stable performance and standard DIN-rail installation for easy wiring and maintenance. With reliable protection performance and long service life, it is widely used in residential buildings, shops, small industrial sites and light commercial applications to ensure safe and stable operation of electrical circuits and equipment.

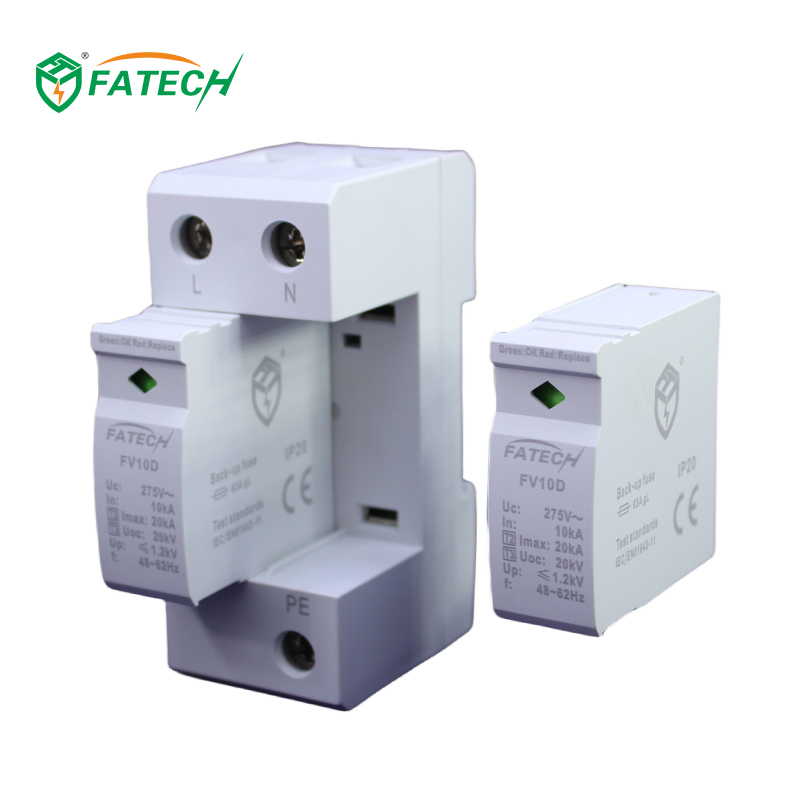

-Consisting of a base part and MOV pluggable protection modules.

-For using in the lightning protection zones concept at boundary 1-2.

-The core parts are metal oxide vristor components with high discharge capacity.

-Low residual voltage and quick response.

-Reliable control thanks to Thermo Dynamic Control disconnector.

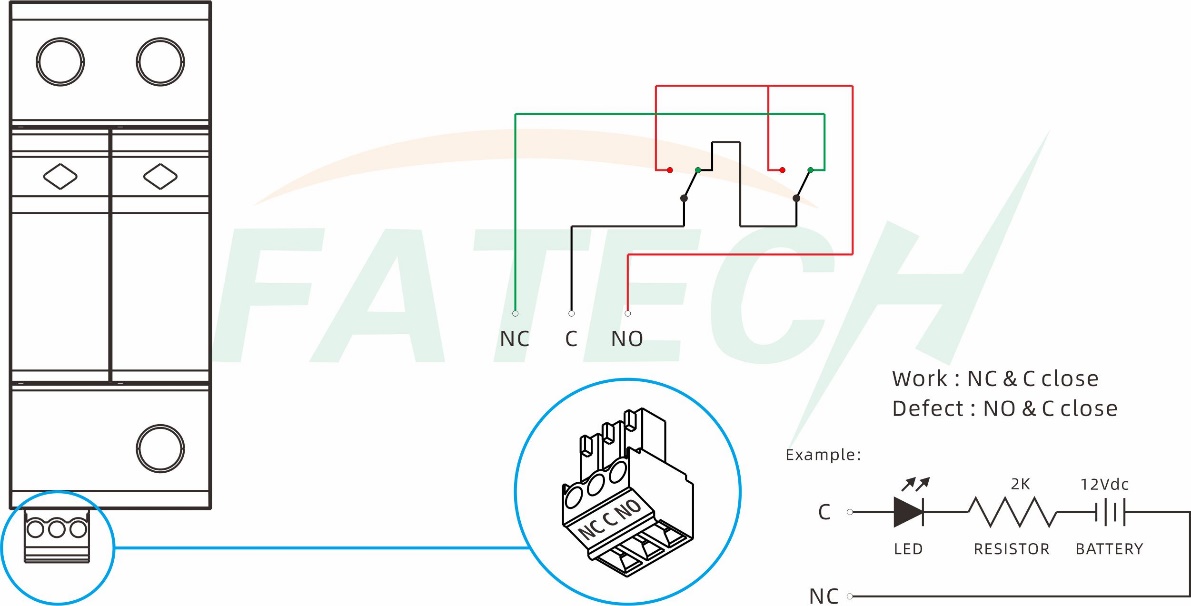

-With remote signaling contact for control device.

-Fault indication via red mark in the inspection window.

-Protection mode: L-PE,N-PE.

Get a Quote
Get a Quote
Product Brochure
Click to enlarge

Advantage

Stable & Reliable Surge Protection

Stable & Reliable Surge Protection

Adopts high-quality core components and precise circuit design, providing stable and consistent performance to effectively suppress lightning surges and transient overvoltage, ensuring long-term safe operation of equipment.
Wide Application Compatibility

Wide Application Compatibility

Covers AC, DC, photovoltaic, PoE network, and signal surge protection solutions, widely used in solar systems, LED lighting, industrial control, security monitoring, buildings and infrastructure.
Durable Structure & Easy Installation

Durable Structure & Easy Installation

Features rugged housing (including aluminum enclosure for outdoor models), DIN‑rail mounting, pluggable design and compact size for easy installation, wiring and maintenance in various working environments.
Certified Quality & Cost-Effective

Certified Quality & Cost-Effective

Most core products have passed TUV, CE and international safety certifications, with strict quality control. Stable performance and reasonable pricing bring high cost-performance for global projects.
FV10D/2-275S

UN:220/380V

UC:275V

In:10kA

Iimp:20kA

Up≤1.2kV

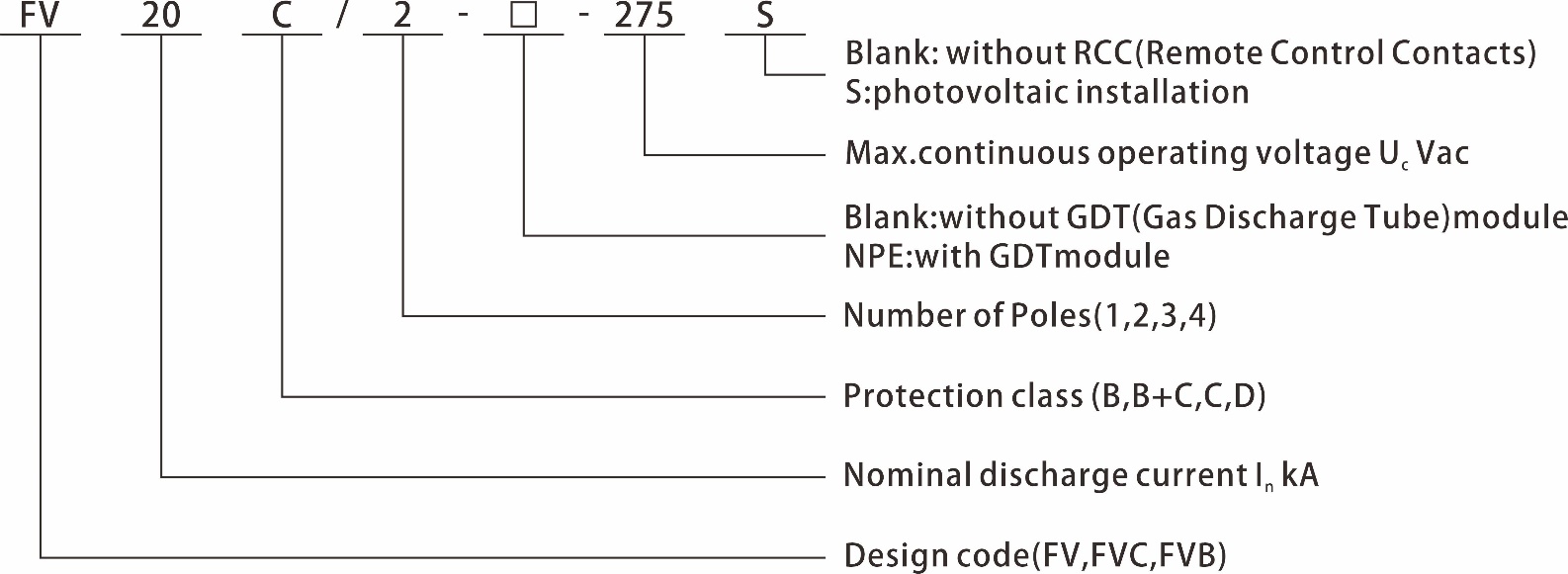

Coding of  ac surge protection device FV10D/2-275S

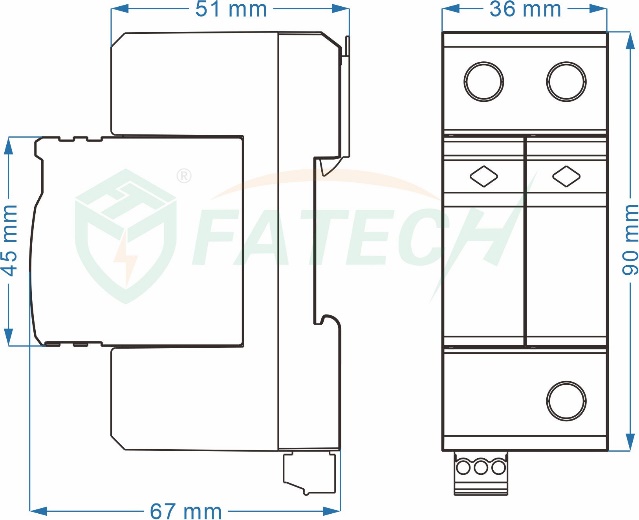

Dimension of  ac surge protection device FV10D/2-275S

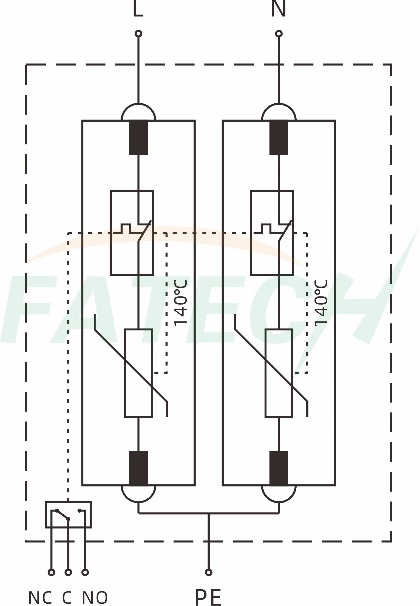

Circuit of  ac surge protection device FV10D/2-275S

Installation of  ac surge protection device FV10D/2-275S



Electrical parameters

Model. No. FV10D/2-275(S)
Test class IEC/EN/VDE Class II+III/C+/T2+T3
Type of Network TT ，TN
Protection Mode L-PE , N-PE
Nominalvoltage 50(60)Hz UN 220/380V
Rated Voltage (Max. Cont. Operating Voltage) Ue 275V
Max. discharge current (8/20us)Imax 20kA
Nominal discharge current (8/20us) IN 10kA
Voltage protective level Up ≤1.2kV
Open circuit voltage Uoc 20kV
Response time tA ≤25ns
Recommended back-up fuse 63A
Isolation resistance ＞102MΩ
I/O Connections Multi core wire:4mm2~25mm2
Mounting 35mm Symmetrical rail(EN50022-DIN46277-3)
Operation temperature range/humidity /altitude -40°C~+80°C / 30%~90% / 3000m
Degree of protection IP20
Housing material UL94V-0
Disconnectionindicator Mechanical indicator (Green: OK, Red: replace)
Remote controlcontact Optional

Searching For A Reliable SPD & Surge Protector To Secure Your Projects?

MOQ is flexible and can be negotiated. Depending on your system solution, Accept Customization for Small Orders. Design products as your specification. Professional protection and stable performance for global projects. Submit an online message. Reply within 24 hours by email.

Why Send Us An Inquiry？

  • Professional SPD & lightning surge protection solutions
  • Custom design for your project & small MOQ supported
  • Certified quality & factory direct price
  • Quick technical support & quotation
  • Response in 24 hours

FATECH supplies products to global customers through distributors, wholesalers, and direct project cooperation. You can contact us online for quotation and support.

The remote signaling contact monitors the working status of the SPD. It sends an alarm signal when the SPD fails or needs replacement, enabling real-time monitoring and maintenance.

FATECH SPDs feature TUV & CE certification, stable performance, long service life, and professional technical support. They are widely used in PV, industrial, lighting, network, and residential applications with high cost-performance.

Yes, we support OEM and ODM services

SPDs are widely used in residential buildings, commercial centers, industrial factories, solar PV power stations, LED lighting, security CCTV, telecom base stations, data centers, and infrastructure projects.

Effective grounding provides a low-resistance path for surge current to discharge quickly. Poor grounding will reduce protection performance, increase residual voltage, and may cause equipment damage.
